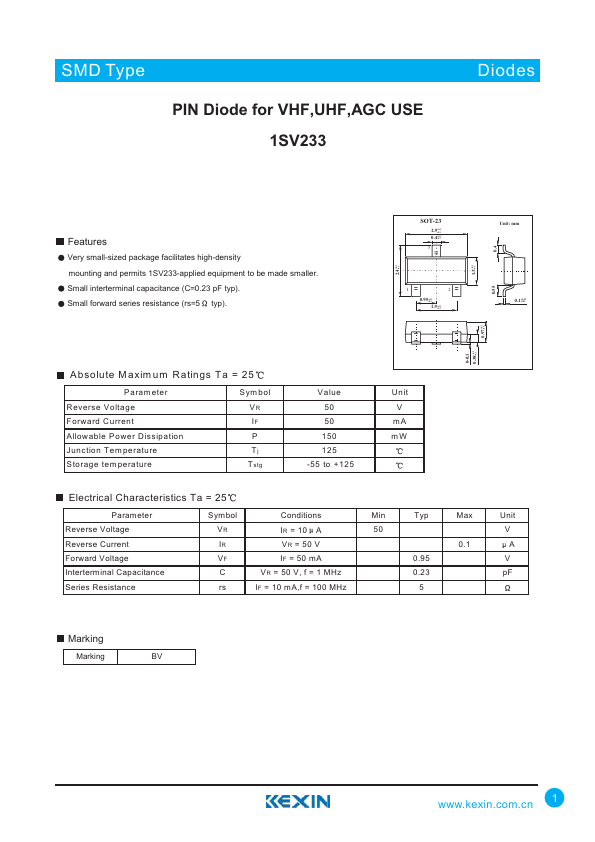

1SV233
Features
Very small-sized package facilitates high-density mounting and permits 1SV233-applied equipment to be made smaller. Small interterminal capacitance (C=0.23 p F typ). Small forward series resistance (rs=5 typ).
+0.1 2.4 -0.1
SOT-23
2.9+0.1 -0.1
0.4+0.1 -0.1
0.95+0.1 -0.1 1.9+0.1 -0.1
+0.1 1.3 -0.1
Unit: mm 0.1+0.05
-0.01
+0.1 0.97 -0.1
Absolute M axim um Ratings Ta = 25
Param eter Reverse Voltage Forward Current Allowable Power Dissipation Junction Tem perature Storage tem perature
Sym bol VR IF P Tj T stg
V a lu e 50 50 150 125
-55 to +125
U n it V m A m W
0-0.1 +0.1 0.38
-0.1
1.Base 2.Emitter 3.collector
Electrical Characteristics Ta = 25
Parameter Reverse Voltage Reverse Current Forward Voltage Interterminal Capacitance Series Resistance
Symbol
Conditions
Min
Typ
Max
Unit
IR = 10 A
VR = 50...
