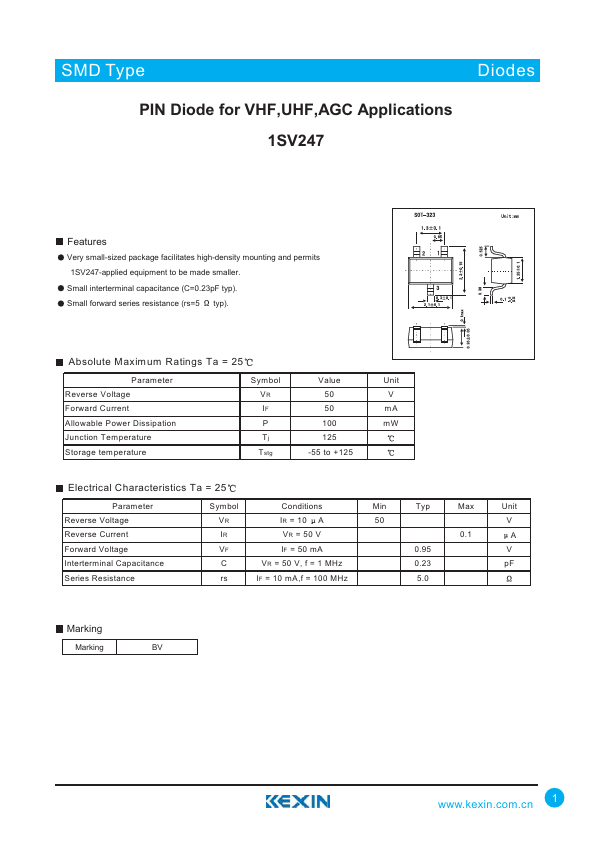

1SV247
1SV247 is PIN Diode for VHF manufactured by Kexin Semiconductor.
Features
Very small-sized package facilitates high-density mounting and permits 1SV247-applied equipment to be made smaller. Small interterminal capacitance (C=0.23p F typ). Small forward series resistance (rs=5 typ).
Absolute Maximum Ratings Ta = 25
P aram eter Reverse Voltage Forward Current Allowable Power Dissipation Junction Temperature Storage temperature
Symbol VR IF P Tj Tstg
Value 50 50 100 125
-55 to +125
Unit V m A m W
Electrical Characteristics Ta = 25
Parameter Reverse Voltage Reverse Current Forward Voltage Interterminal Capacitance Series Resistance
Symbol
Conditions
Min
Typ
Max
Unit
IR = 10 A
VR = 50 V
IF = 50 m A
VR = 50 V, f = 1 MHz
0.23 p F rs
IF = 10 m A,f = 100 MHz
Marking
Marking
