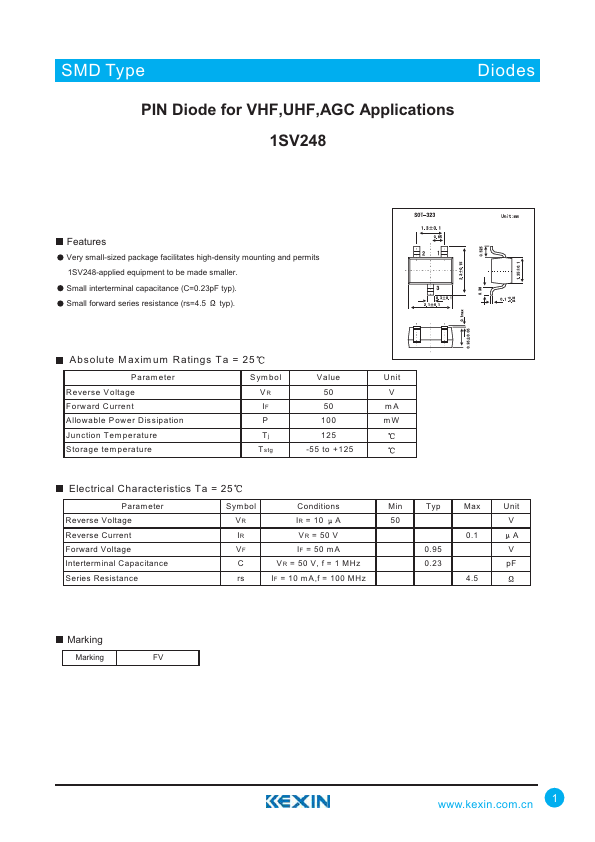

1SV248 Datasheet | Kexin Semiconductor

Features Very small-sized package facilitates high-density mounting and permits 1SV248-applied equipment to be made smaller. Small interterminal capacitance (C=0.23p F typ). Small forward series resistance (rs=4.5 typ). Absolute M axim um Ratings Ta = 25 Param eter Reverse Voltage Forward Current Allowable Power Dissipation Junction Tem perature Storage tem perature Sym bol VR IF P Tj T stg V a lu e 50 50 100 125 -55 to +125 U n it V m A m W Electrical Characteristics Ta = 25 P aram eter Reverse Voltage Reverse Current Forward Voltage Interterminal Capacitance Series Resistance Sym bol Conditions Min Typ Max Unit IR = 10 A VR = 50 V IF = 50 m A VR = 50 V, f = 1 MHz 0.23 p F rs IF = 10 m A,f = 100 MHz Marking Marking .kexin..cn...
