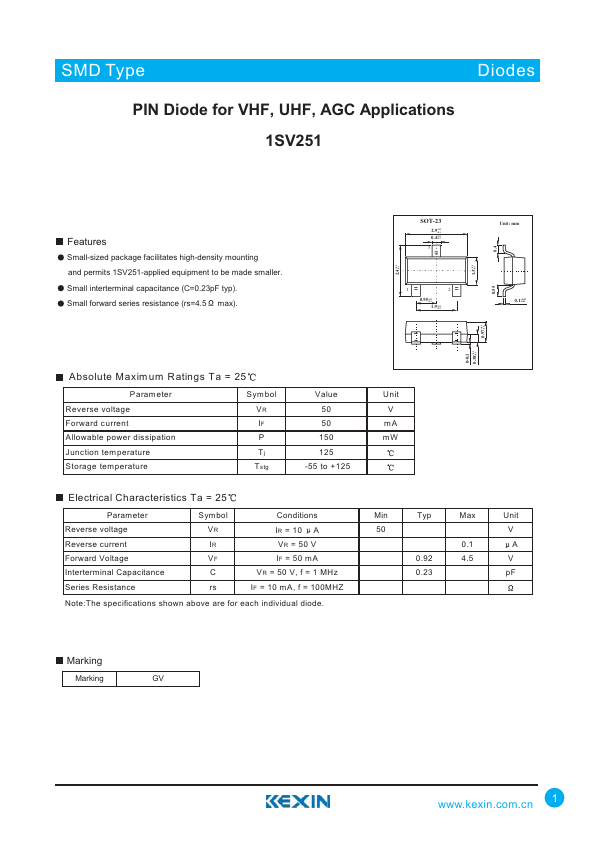

Features Small-sized package facilitates high-density mounting and permits 1SV251-applied equipment to be made smaller. Small interterminal capacitance (C=0.23p F typ). Small forward series resistance (rs=4.5 max). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 0.95+0.1 -0.1 1.9+0.1 -0.1 +0.1 1.3 -0.1 Unit: mm 0.1+0.05 -0.01 +0.1 0.97 -0.1 Absolute Maxim um Ratings Ta = 25 P aram eter Reverse voltage Forward current Allowable power dissipation Junction temperature Storage temperature Symbol VR IF P Tj Tstg Value 50 50 150 125 -55 to +125 Unit V m A m W Electrical Characteristics Ta = 25 Parameter Reverse voltage Reverse current Forward Voltage Interterminal Capacitance Series Resistance Symbol VR IR VF C rs Conditions IR = 10 A VR = 50 V IF = 50 m A VR = 50 V, f = 1 MHz IF = 10 m A, f = 100MHZ Note:The specifications shown above are for each individual diode. Min Typ 0.92 0.23 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.collector Max Unit V p F Marking Marking...
