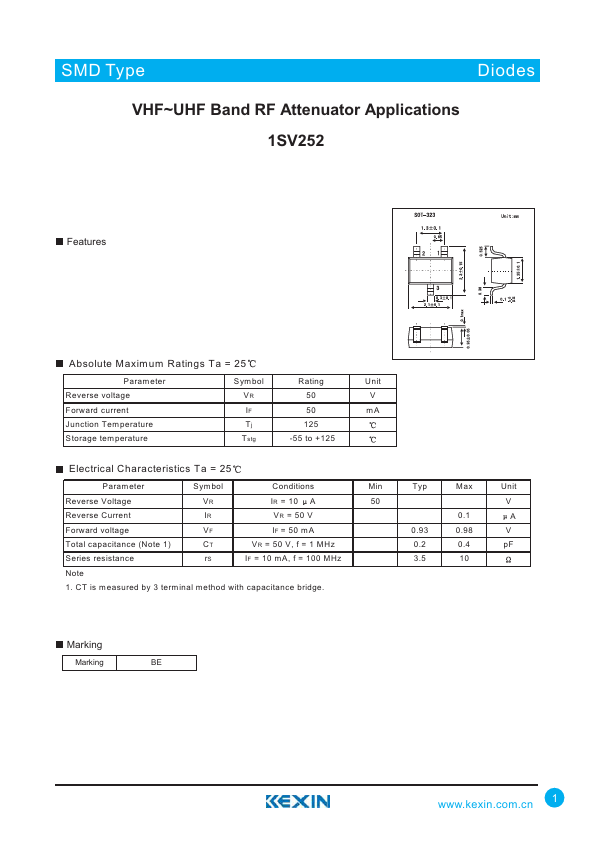

1SV252
Features
Absolute Maxim um Ratings Ta = 25
P aram eter Reverse voltage Forward current Junction Temperature Storage temperature
Symbol VR IF Tj Tstg
Rating 50 50 125
-55 to +125
Unit V m A
Electrical Characteristics Ta = 25
P aram eter
Symbol
Conditions
Min
Typ
Max
Unit
Reverse Voltage
IR = 10 A
Reverse Current
VR = 50 V
Forward voltage
IF = 50 m A
Total capacitance (Note 1)
VR = 50 V, f = 1 MHz
0.4 p F
Series resistance r S
IF = 10 m A, f = 100 MHz
Note
1. CT is measured by 3 terminal method with capacitance bridge.
Marking
Marking...
