2KK5021 - N-Channel MOSFET

Features

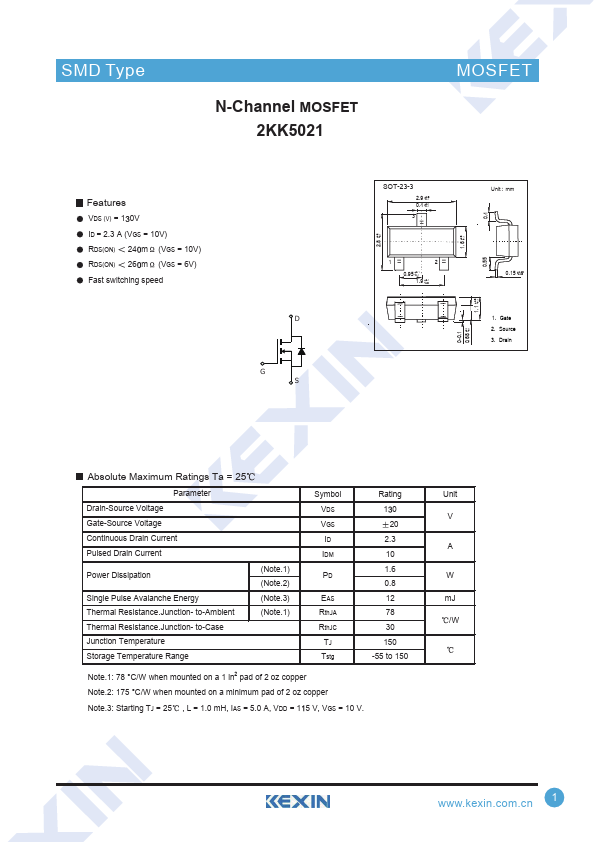

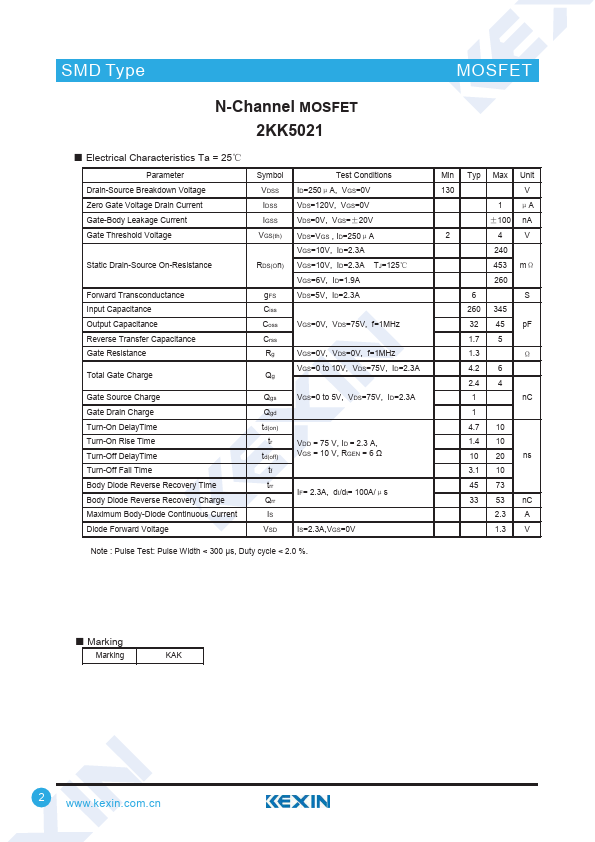

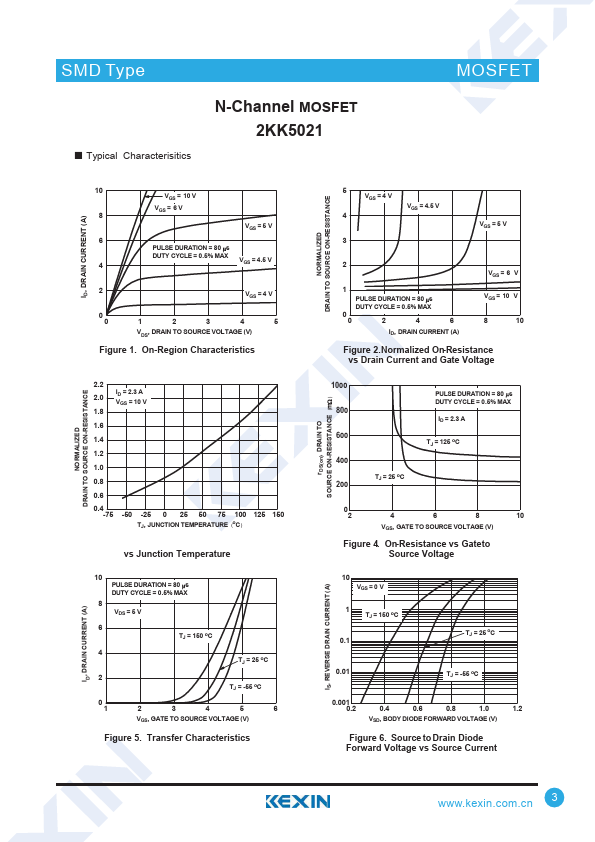

  • VDS (V) = 1 0V ID = 2.3 A (VGS = 10V) RDS(ON) 24 m (VGS = 10V) RDS(ON) 26 m (VGS = 6V) Fast switching speed D G S +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit : mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current Power Dissipation Single Pulse Avalanche Ene.
