2KK5125DFN Datasheet PDF

Kexin Electronics 2KK5125DFN

N-Channel MOSFET

Part No. 2KK5125DFN
Datasheet 2KK5125DFN Download
Manufacturer Kexin Electronics
Description N-Channel MOSFET
Buy Stock & Price

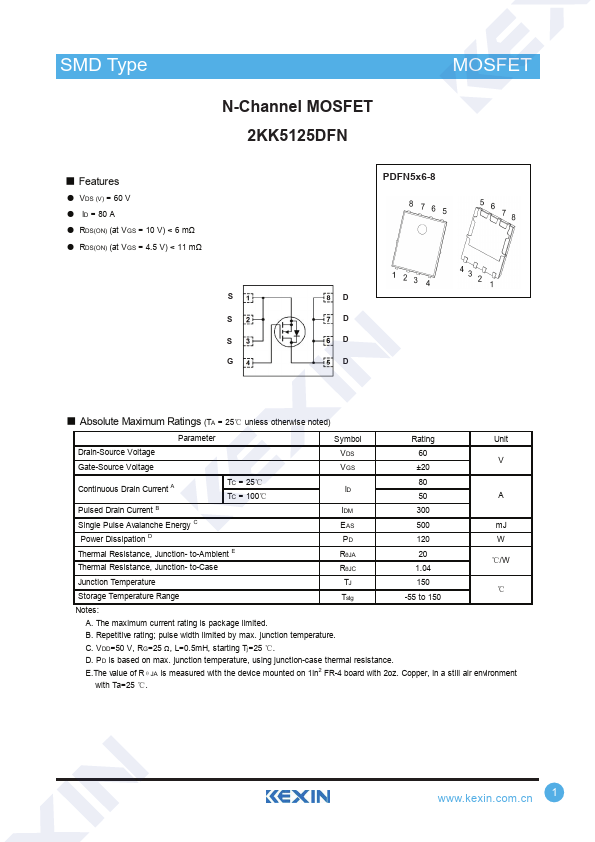

2KK5125DFN datasheet page 1 preview

FEATURES

● VDS (V) = 60 V
● ID = 80 A
● RDS(ON) (at VGS = 10 V) < 6 mΩ
● RDS(ON) (at VGS = 4.5 V) < 11 mΩ PDFN5x6-8 S D S D S D G D
●

ABSOLUTE MAXIMUM RATINGS

(TA = 25℃ unless otherwise noted) Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 60 V VGS ±20 Continuous Drain Current A TC = 25℃ TC = 100℃ Pulsed Drain Current B Single Pulse Avalanche Energy C Power Dissipation D Thermal Resistance, Junction- to-Ambient E Thermal Resistance, Junction- to-Case ID IDM EAS PD RθJA RθJC 80 50 300 500 120 20 1.04 A mJ W ℃/W Junction Temperature Storage Temperature Range TJ 150 ℃ Tstg -55 to 150 Notes: A. The maximum current rating is package limited. B. Repetitive rating; pulse width limited by max. junction temperature. C. VDD=50 V, RG=25 Ω, L=0.5mH, starting Tj=25 ℃. D. PD is based on max. junction temperature, using junction-case thermal resistance. E.The value of RθJA is measured with the device mounted on 1in2 FR-4 board with 2oz. Copper, in a still air environment with Ta=25 ℃.

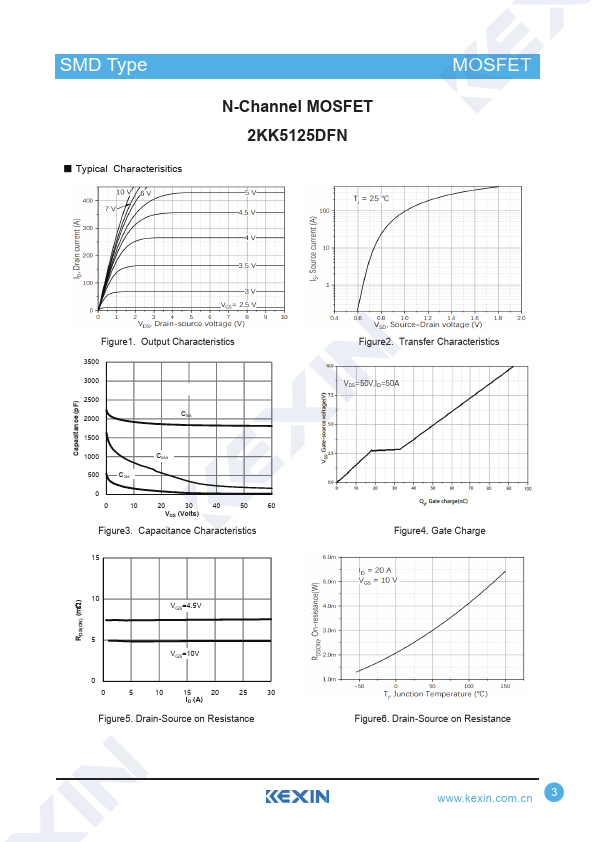

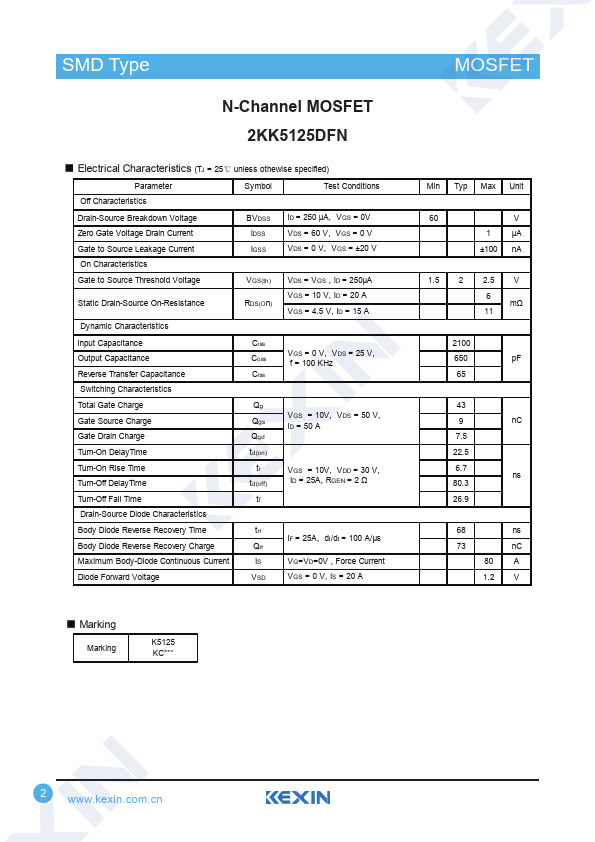

2KK5125DFN page 2 preview 2KK5125DFN page 3 preview
