2PC4081 - NPN General Purpose Transistor

Key Features

  • High current (max. 100 mA) Low voltage (max. 40 V) Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage Collector-emitter voltage VCBO 50 V VCEO 40 V Emitter-base voltage VEBO 5 V Collector current IC 100 mA Peak collector current ICM 200 mA Peak base current Total power dissipation.
  • IBM 200 mA Ptot 200 mW Storage temperature Tstg -65 to +150 Junction temperature Tj 150 Operating ambient temperature Tamb -65 to +150 Th.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2PC4081 NPN general purpose transistor NXP
2PC4081Q NPN general-purpose transistor nexperia
2PC4081Q-Q NPN general-purpose transistor nexperia
2PC4081R NPN transistor nexperia
2PC4081R-Q NPN general-purpose transistor nexperia

Other Datasheets by Kexin Semiconductor

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

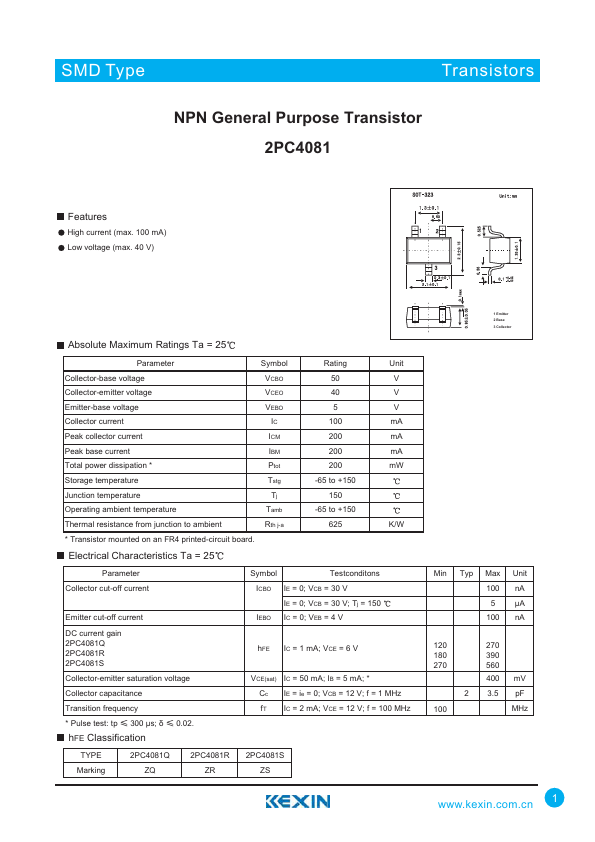

SMD Type Transistors NPN General Purpose Transistor 2PC4081 Features High current (max. 100 mA) Low voltage (max. 40 V) Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage Collector-emitter voltage VCBO 50 V VCEO 40 V Emitter-base voltage VEBO 5 V Collector current IC 100 mA Peak collector current ICM 200 mA Peak base current Total power dissipation * IBM 200 mA Ptot 200 mW Storage temperature Tstg -65 to +150 Junction temperature Tj 150 Operating ambient temperature Tamb -65 to +150 Thermal resistance from junction to ambient Rth j-a 625 K/W * Transistor mounted on an FR4 printed-circuit board.
