2PD602A - NPN General Purpose Transistor

Key Features

  • High current (max. 500 mA) Low voltage (max. 50 V). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage VCBO 60 V Collector-emitter voltage VCEO 50 V Emitter-base voltage VEBO 5 V Collector current (DC) IC 500 mA Peak collector current ICM 1 A Peak base current IBM 200 mA Total power dissipation Tamb 25 ;.
  • Ptot 250 mW Storage temperature Ts.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2PD602A NPN general purpose transistor NXP
2PD602AQL NPN Transistor nexperia
2PD602AQL NPN Transistor NXP Semiconductors
2PD602AQL-Q 50V 500mA NPN general-purpose transistor nexperia
2PD602ARL NPN Transistor NXP Semiconductors

Other Datasheets by Kexin Semiconductor

Part Number Description
2PD601A NPN General Purpose Transistor
2PD601AW NPN Transistor
2PD1820A NPN General Purpose Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

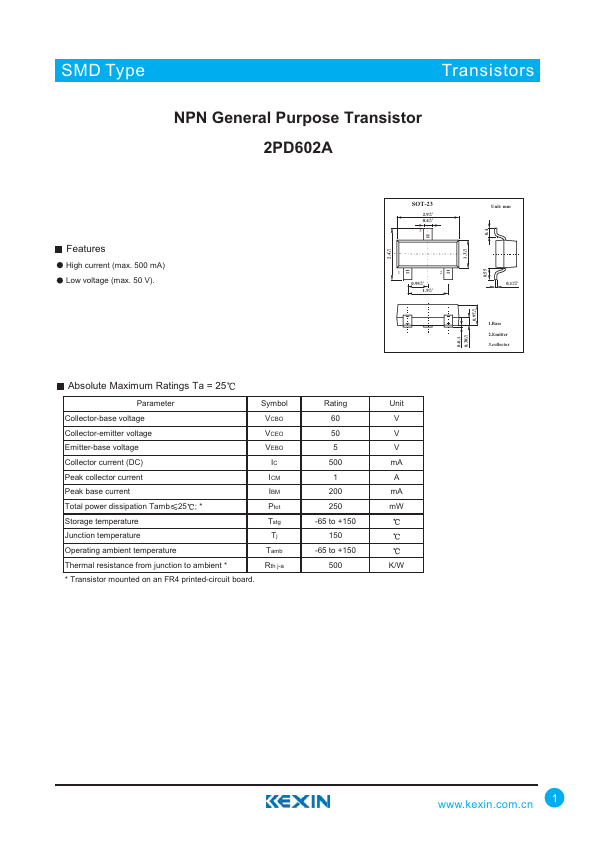

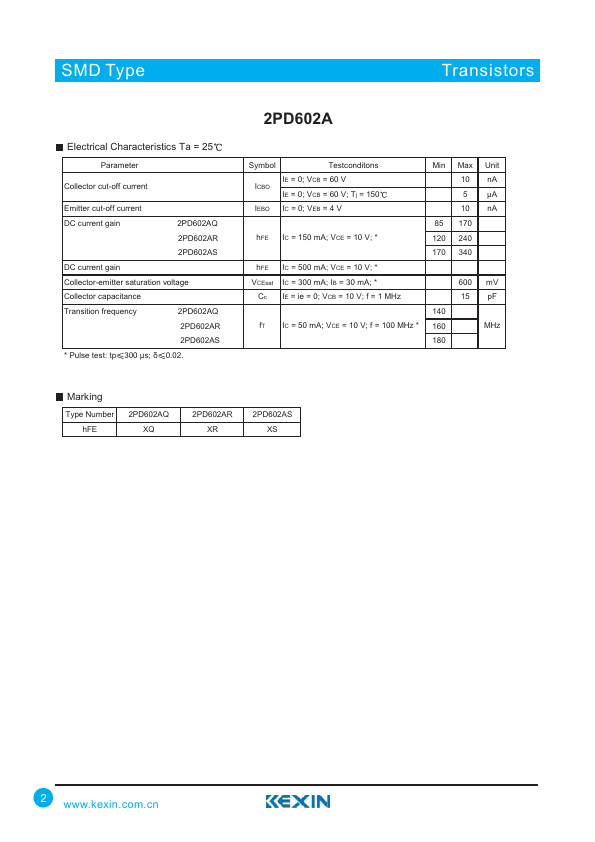

SMD Type TransistIoCrs NPN General Purpose Transistor 2PD602A Features High current (max. 500 mA) Low voltage (max. 50 V). +0.1 2.4 -0.1 SOT-23 2.9+0.1 -0.1 0.4+0.1 -0.1 3 1 2 0.95+0.1 -0.1 1.9+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Symbol Rating Unit Collector-base voltage VCBO 60 V Collector-emitter voltage VCEO 50 V Emitter-base voltage VEBO 5 V Collector current (DC) IC 500 mA Peak collector current ICM 1 A Peak base current IBM 200 mA Total power dissipation Tamb 25 ; * Ptot 250 mW Storage temperature Tstg -65 to +150 Junction temperature Tj 150 Operating ambient temperature Tamb -65 to +150 Thermal resistance from junction to ambient * Rth j-a 500 K/W * Transistor mounted on an FR4 printed-circuit board. 0-0.1 +0.
