2SA1034 - PNP Transistors

Kexin Semiconductor

Key Features

s.
Collector Current Capability IC=-50mA.
Collector Emitter Voltage VCEO=-35V.
Complementary to 2SC2405 +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1.
Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Collector Power Dissipation Junction T.

2SA1034 pnp transistors by Kexin Semiconductor - Datasheet Preview

Datasheet Details

Part number	2SA1034
Manufacturer	Kexin Semiconductor
File Size	1.00 MB
Description	PNP Transistors
Datasheet	2SA1034 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
2SA1034	Silicon NPN epitaxial planer type Transistor	Panasonic Semiconductor
2SA103	Ge PNP Drift Transistor	ETC
2SA1030	Silicon PNP Epitaxial Transistor	Hitachi Semiconductor
2SA1031	Silicon PNP Epitaxial Transistor	Hitachi Semiconductor
2SA1032	Silicon PNP Epitaxial Transistor	Hitachi Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number	Description
2SA1035	PNP Transistors
2SA1036K	Medium Power Transistor
2SA1037	PNP Transistors
2SA1013	PNP Transistors
2SA1015	PNP Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

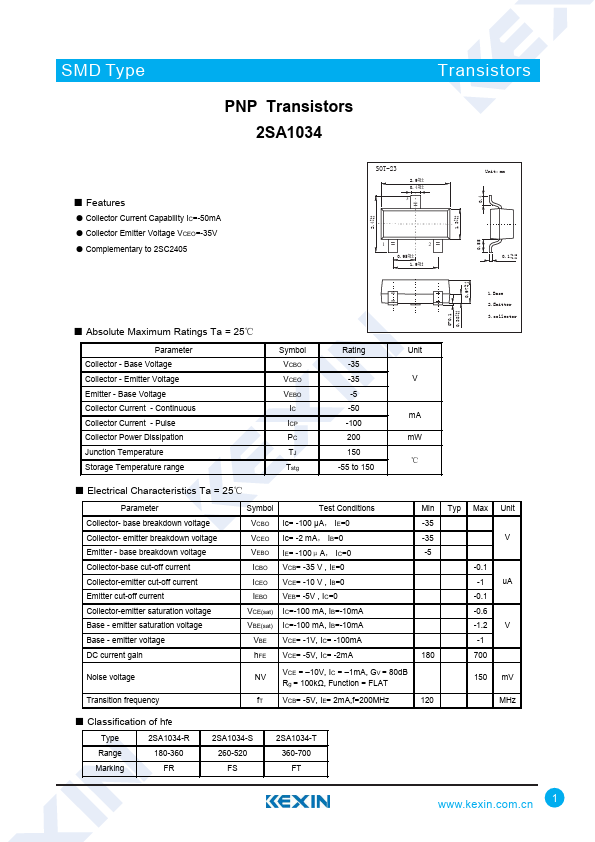

SMD Type PNP Transistors 2SA1034 Transistors ■ Features ● Collector Current Capability IC=-50mA ● Collector Emitter Voltage VCEO=-35V ● Complementary to 2SC2405 +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Collector Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Unit VCBO -35 VCEO -35 V VEBO -5 IC -50 mA ICP -100 PC 200 mW TJ 150 ℃ Tstg -55 to 150 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.
