2SA1035 - PNP Transistors

Key Features

  • Low noise voltage NV.
  • High foward current transfer ratio hFE.
  • Complementary to 2SC2406. +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Peak collector current Collector power dissipation Junction temperature Storage temperature.
  • Electr.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1035 Silicon NPN epitaxial planer type Transistor Panasonic Semiconductor
2SA103 Ge PNP Drift Transistor ETC
2SA1030 Silicon PNP Epitaxial Transistor Hitachi Semiconductor
2SA1031 Silicon PNP Epitaxial Transistor Hitachi Semiconductor
2SA1032 Silicon PNP Epitaxial Transistor Hitachi Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1034 PNP Transistors
2SA1036K Medium Power Transistor
2SA1037 PNP Transistors
2SA1013 PNP Transistors
2SA1015 PNP Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

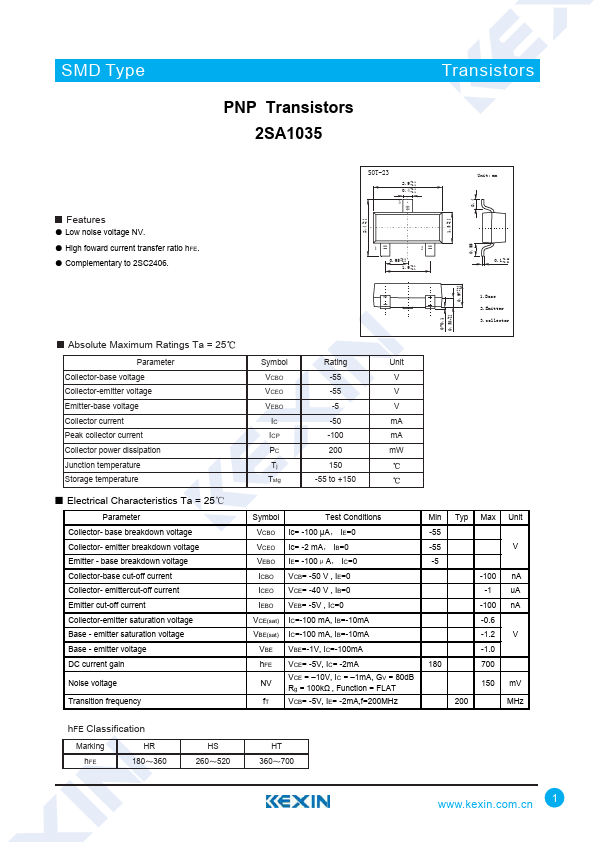

SMD Type PNP Transistors 2SA1035 TransistIoCrs Features ● Low noise voltage NV. ● High foward current transfer ratio hFE. ● Complementary to 2SC2406. +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.
