2SA1182 - PNP Transistors

Key Features

  • s.
  • Collector Current Capability IC=-0.5A.
  • Collector Emitter Voltage VCEO=-32V.
  • Complementary to 2SC2859. +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 1.Base 2.Emitter 3.collector 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Base Curren.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1182 Silicon PNP Transistor Toshiba Semiconductor
2SA1180 SILICON POWER TRANSISTOR SavantIC
2SA1180 POWER TRANSISTOR Inchange Semiconductor
2SA1184 Silicon PNP Transistor Toshiba
2SA1184 SILICON POWER TRANSISTOR SavantIC

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1182-HF PNP Transistors
2SA1121 Silicon PNP Transistor
2SA1122 PNP Transistors
2SA1162 Silicon PNP Transistor
2SA1163 Silicon PNP Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

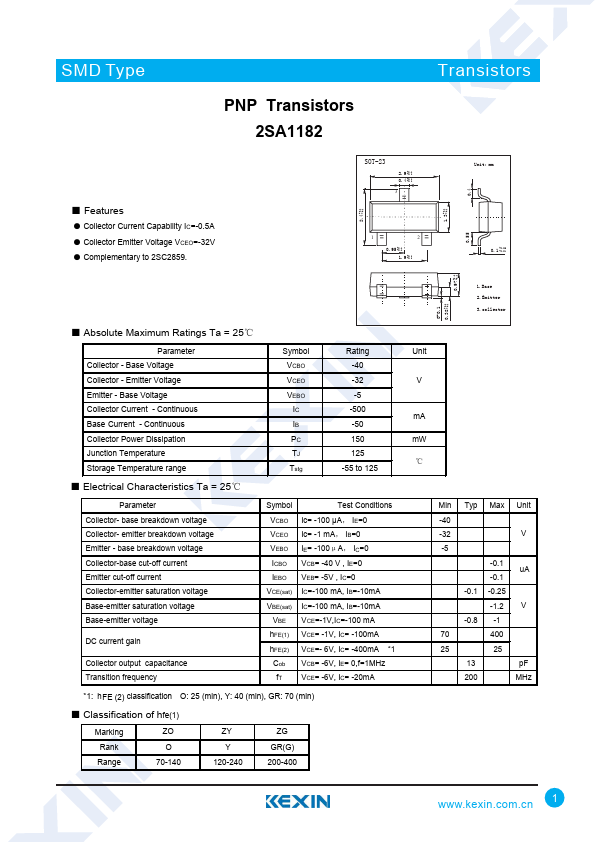

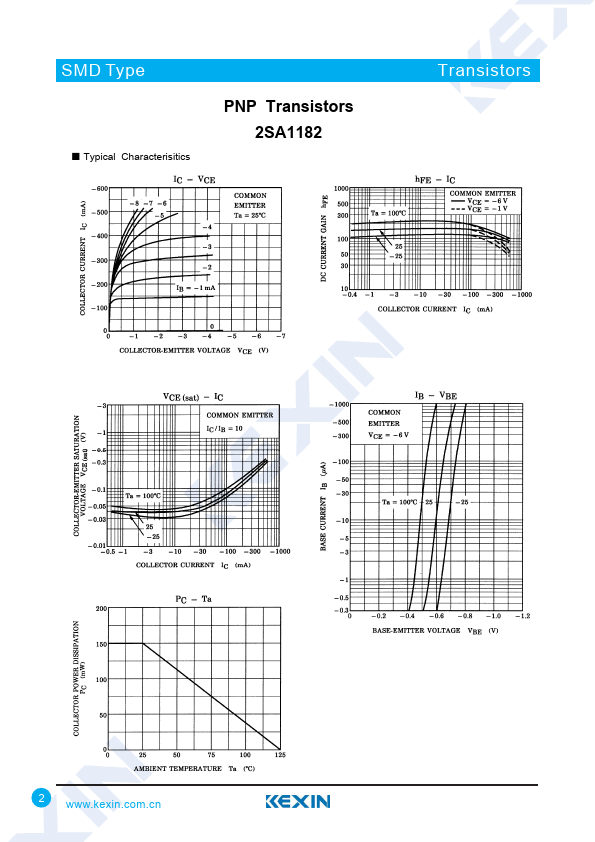

SMD Type Transistors PNP Transistors 2SA1182 ■ Features ● Collector Current Capability IC=-0.5A ● Collector Emitter Voltage VCEO=-32V ● Complementary to 2SC2859. +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 1.Base 2.Emitter 3.collector 0-0.1 +0.1 0.38 -0.
