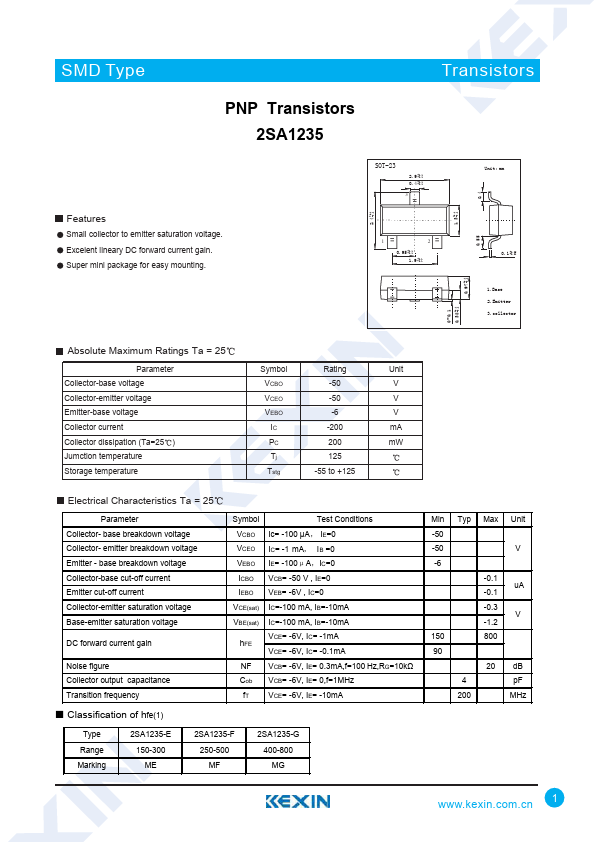

2SA1235 Datasheet PDF

FEATURES

Small collector to emitter saturation voltage. Excelent lineary DC forward current gain. Super mini package for easy mounting. +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1.Base 2.Emitter 3.collector 0-0.1 +0.1 0.38 -0.1

ABSOLUTE MAXIMUM RATINGS

Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Collector dissipation (Ta=25 ) Jumction temperature Storage temperature Symbol Rating Unit VCBO -50 V VCEO -50 V VEBO -6 V IC -200 mA PC 200 mW Tj 125 Tstg -55 to +125

ELECTRICAL CHARACTERISTICS

Ta = 25 Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter - base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage Base-emitter saturation voltage DC forward current gain Noise figure Collector output capacitance Transition frequency Symbol T...
