Kexin Electronics 2SA1682
PNP Transistors
| Part No. | 2SA1682 |
|---|---|
| Datasheet | 2SA1682 Download |
| Manufacturer | Kexin Electronics |
| Description | PNP Transistors |
| Buy | Stock & Price |

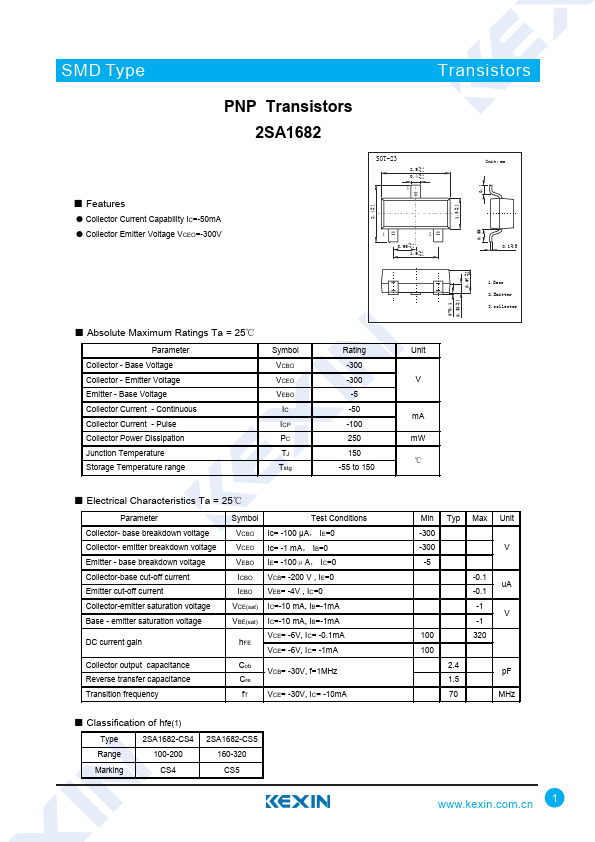

FEATURES
● Collector Current Capability IC=-50mA● Collector Emitter Voltage VCEO=-300V +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Collector Power Dissipation Junction Temperature Storage Temperature range Symbol VCBO VCEO VEBO IC ICP PC TJ Tstg Rating Unit -300 -300 V -5 -50 mA -100 250 mW 150 ℃ -55 to 150 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.collector●

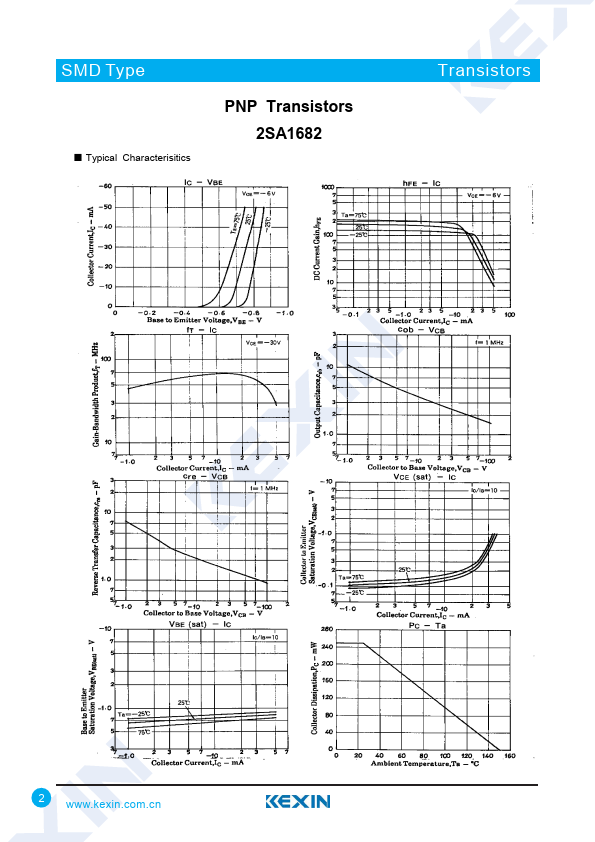

ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter - base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage Base - emitter saturation voltage DC current gain Collector output capacitance Reverse transfer capacitance Transi...
