2SA1729 - PNP Transistors

Key Features

  • s.
  • Large current capacity.
  • Low collector-to-emitter saturation voltage.
  • Fast switching speed.
  • Small-sized package. 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Collector - Base Voltage VCBO -50 Collector - Emitter Voltage VCEO -40 Emitter - Base Voltage VEBO -5 Collector Current - Continuous IC -1.5 Collector Current -Pulse ICp -3 Collector Power Dissipation (Note.1) PC 1.3.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1729 PNP Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA1721 Silicon PNP Transistor Toshiba Semiconductor
2SA1723 PNP Epitaxial Planar Silicon Transistors Sanyo Semicon Device
2SA1724 PNP Epitaxial Silicon Transistor Sanyo Semicon Device
2SA1725 Silicon PNP Transistor Sanken electric

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1730 PNP Transistors
2SA1734 PNP Transistors
2SA1735 PNP Transistors
2SA1736 PNP Transistors
2SA1736-HF PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

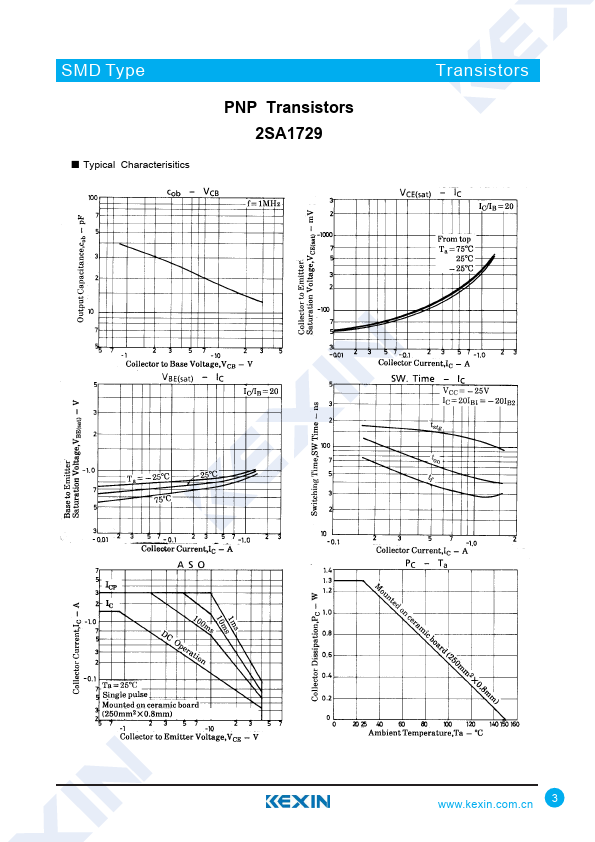

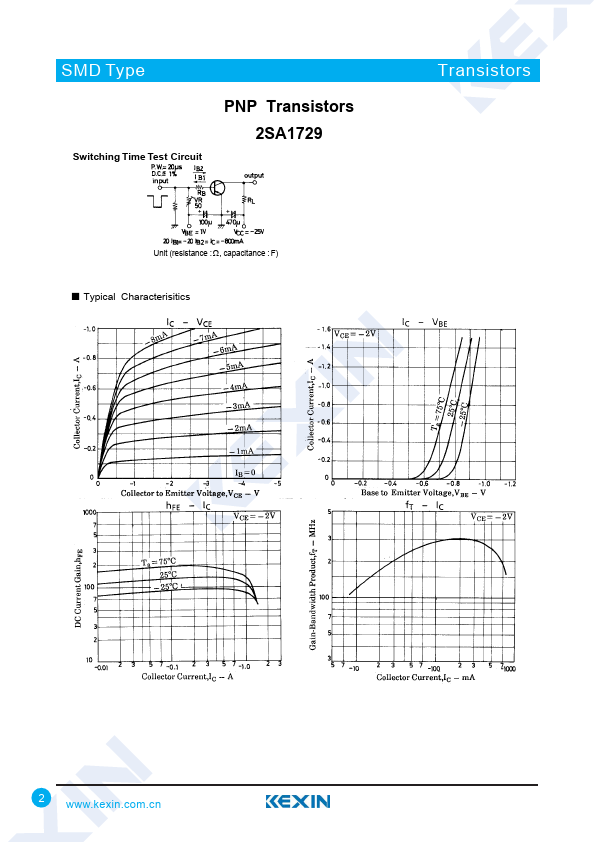

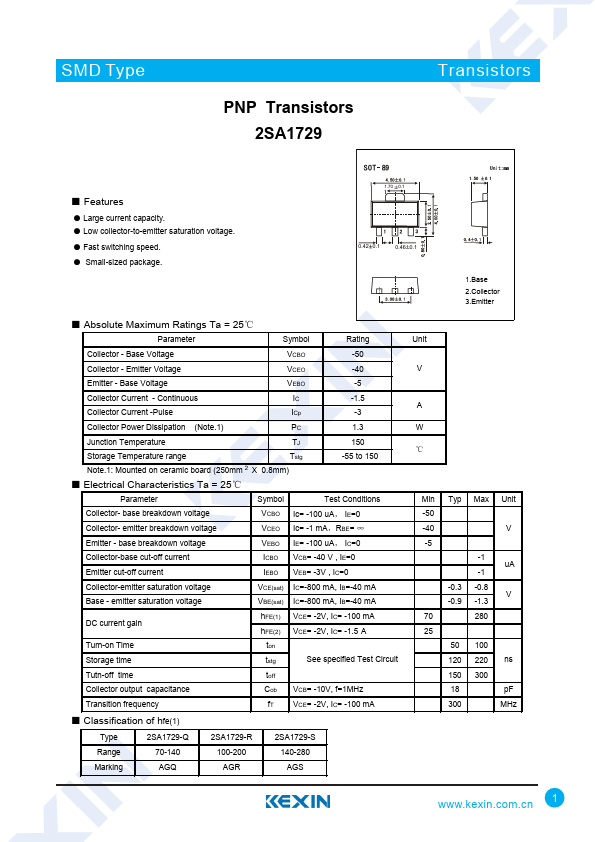

SMD Type PNP Transistors 2SA1729 Transistors ■ Features ● Large current capacity. ● Low collector-to-emitter saturation voltage. ● Fast switching speed. ● Small-sized package. 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Collector - Base Voltage VCBO -50 Collector - Emitter Voltage VCEO -40 Emitter - Base Voltage VEBO -5 Collector Current - Continuous IC -1.5 Collector Current -Pulse ICp -3 Collector Power Dissipation (Note.1) PC 1.3 Junction Temperature TJ 150 Storage Temperature range Tstg Note.1: Mounted on ceramic board (250mm 2 X 0.
