Kexin Electronics 2SA1759
PNP Transistors
| Part No. | 2SA1759 |
|---|---|
| Datasheet | 2SA1759 Download |
| Manufacturer | Kexin Electronics |
| Description | PNP Transistors |
| Buy | Stock & Price |

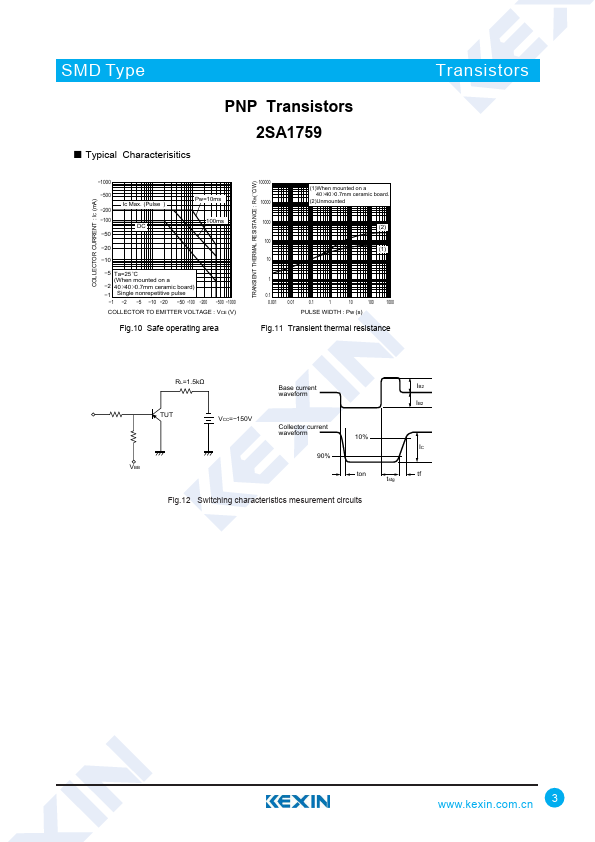

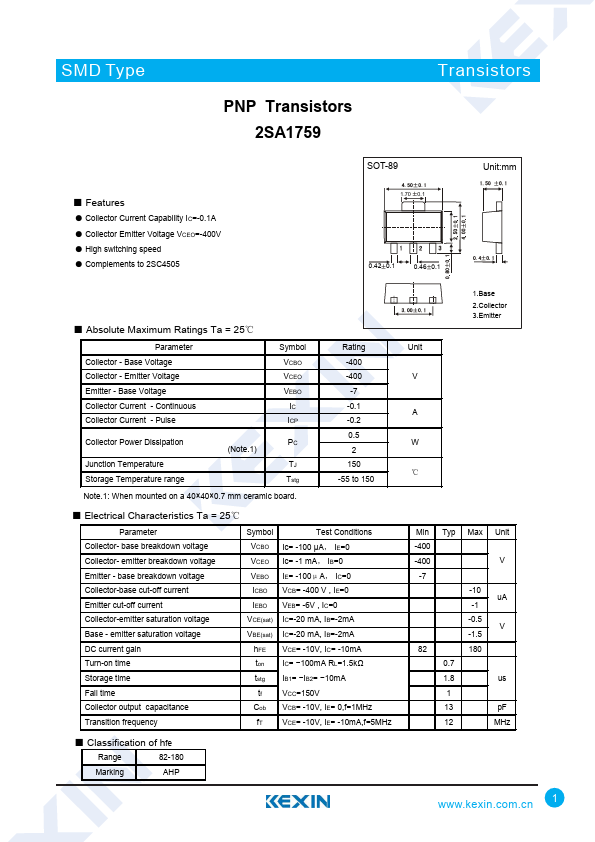

FEATURES
● Collector Current Capability IC=-0.1A● Collector Emitter Voltage VCEO=-400V
● High switching speed
● Complements to 2SC4505 1.70 0.1 0.42 0.1 0.46 0.1
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Symbol VCBO VCEO VEBO IC ICP Collector Power Dissipation Junction Temperature Storage Temperature range PC (Note.1) TJ Tstg Note.1: When mounted on a 40×40×0.7 mm ceramic board. Rating -400 -400 -7 -0.1 -0.2 0.5 2 150 -55 to 150●
ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Symbol Test Conditions Collector- base breakdown voltage VCBO Ic= -100 μA， IE=0 Collector- emitter breakdown voltage Emitter - base breakdown voltage Collector-base cut-off current VCEO VEBO ICBO Ic= -1 mA， IB=0 IE= -100μA， IC=0 VCB= -400 V , IE=0 Emitter cut-off current IEBO VEB= -6V , IC=0 Collector-emitter saturation voltage VCE(sat) IC=-20 mA, IB=-2mA Base - emitter saturati...
