2SA1839 - PNP Transistors

Key Features

  • s.
  • Small output capacitance.
  • Low collector-to-emitter saturation voltage.
  • Low ON resistance. +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1.Base 2.Emitter 3.collector 0-0.1 +0.1 0.38 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Colletor Current - Pul.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1839 PNP Epitaxial Planar Silicon Transistor Sanyo Semicon Device
2SA1830 PNP Epitaxial Planar Silicon Transistor Sanyo Semicon Device
2SA1831 PNP Triple Diffused Planar Silicon Transistors Sanyo Semicon Device
2SA1832 Silicon PNP Transistor Toshiba Semiconductor
2SA1832 PNP Transistor JCST

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1832 Silicon PNP Transistor
2SA1813 PNP Transistors
2SA1815 PNP Transistors
2SA1875 PNP Transistors
2SA1890 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

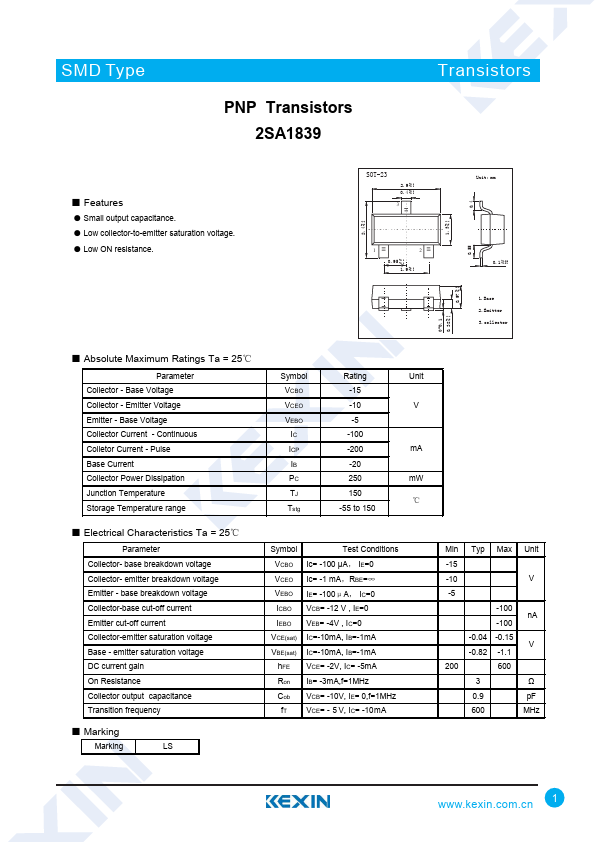

SMD Type PNP Transistors 2SA1839 Transistors ■ Features ● Small output capacitance. ● Low collector-to-emitter saturation voltage. ● Low ON resistance. +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 +0.1 0.97 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 1.Base 2.Emitter 3.collector 0-0.1 +0.1 0.38 -0.
