2SA1890-HF - PNP Transistors

Key Features

  • s.
  • Low collector to emitter saturation voltage VCE(sat).
  • High collector to emitter voltage VCEO.
  • Complementary to 2SC5026-HF.
  • Pb.
  • Free Package May be Available. The G.
  • Suffix Denotes a Pb.
  • Free Lead Finish 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO -80 Collector - Emitter Voltage VCEO -80 V Emitter - Base Voltage VEBO -5 C.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA1890 Silicon PNP epitaxial planer type Transistor Panasonic Semiconductor
2SA1891 Silicon PNP Epitaxial Type Transistor Toshiba Semiconductor
2SA1892 Silicon PNP Epitaxial Type Transistor Toshiba Semiconductor
2SA1893 Silicon PNP Epitaxial Type Transistor Toshiba Semiconductor
2SA1896 PNP Epitaxial Planar Silicon Transistor Sanyo Semicon Device

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA1890 PNP Transistors
2SA1898 PNP Transistors
2SA1813 PNP Transistors
2SA1815 PNP Transistors
2SA1832 Silicon PNP Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

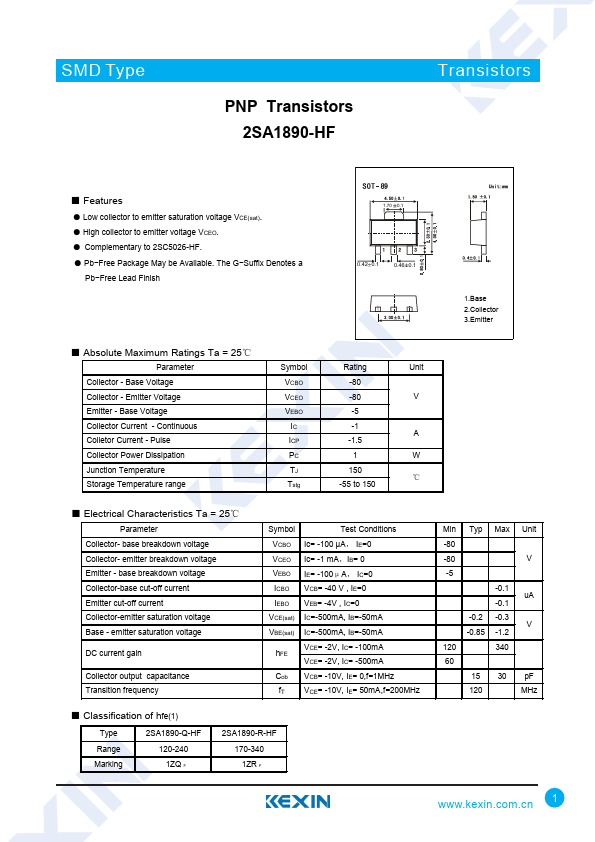

SMD Type PNP Transistors 2SA1890-HF Transistors ■ Features ● Low collector to emitter saturation voltage VCE(sat). ● High collector to emitter voltage VCEO. ● Complementary to 2SC5026-HF. ● Pb−Free Package May be Available. The G−Suffix Denotes a Pb−Free Lead Finish 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO -80 Collector - Emitter Voltage VCEO -80 V Emitter - Base Voltage VEBO -5 Collector Current - Continuous Colletor Current - Pulse IC -1 A ICP -1.
