2SA2071-Q - PNP Transistors

Key Features

  • s.
  • Collector Current Capability IC=-3A.
  • Collector Emitter Voltage VCEO=-60V.
  • High speed switching.
  • Complements the 2SC5824 1.70 0.1 0.42 0.1 0.46 0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Collector Power Dissipation Junction Temperature Storage Temperature range (Note.1) Symbol VCBO VCEO VEBO IC ICP PC TJ Tstg Rating -60 -60.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA2071 Middle Power transistor ROHM
2SA2071P5 Power transistor ROHM
2SA2070 Silicon PNP Transistor Toshiba Semiconductor
2SA2072 PNP -3.0A -60V Middle Power Transistor Rohm
2SA2073 Transistors Rohm

Other Datasheets by Kexin Semiconductor

Part Number Description
2SA2018 PNP Transistors
2SA2058 PNP Transistors
2SA1013 PNP Transistors
2SA1015 PNP Transistor
2SA1022 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

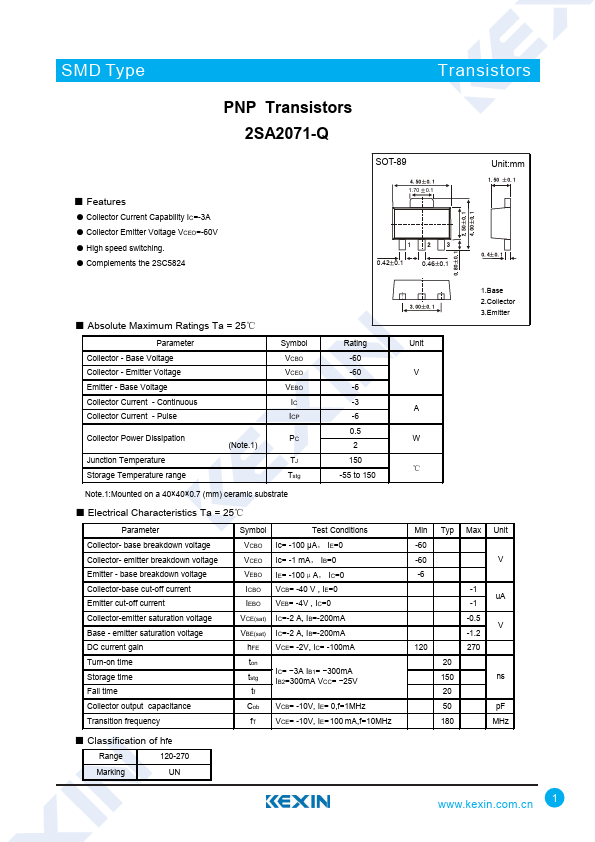

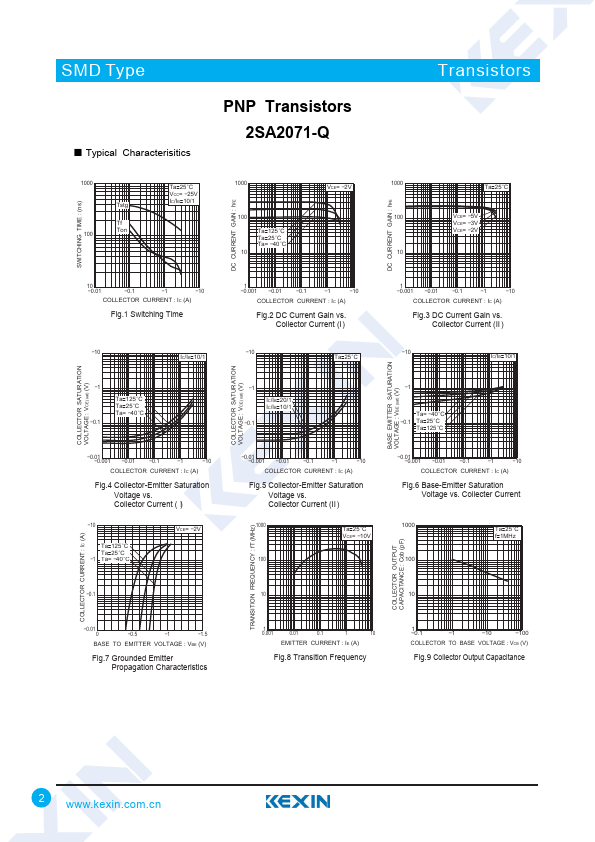

SMD Type Transistors PNP Transistors 2SA2071-Q SOT-89 Unit:mm ■ Features ● Collector Current Capability IC=-3A ● Collector Emitter Voltage VCEO=-60V ● High speed switching. ● Complements the 2SC5824 1.70 0.1 0.42 0.1 0.46 0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Collector Power Dissipation Junction Temperature Storage Temperature range (Note.1) Symbol VCBO VCEO VEBO IC ICP PC TJ Tstg Rating -60 -60 -6 -3 -6 0.5 2 150 -55 to 150 Note.1:Mounted on a 40×40×0.
