2SB1667 - PNP Transistors

Key Features

  • s.
  • Low saturation voltage.
  • Audio Frequency Power Amplifier.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB1667 Silicon PNP Transistor Toshiba Semiconductor
2SB166040ML SCHOTTKY BARRIER DIODE CHIPS Silan Microelectronics Joint-stock
2SB166100MA LOW IR SCHOTTKY BARRIER DIODE CHIPS Silan Microelectronics Joint-stock
2SB1664 PNP Epitaxial Planar Silicon Darlington Transistor Sanyo Semicon
2SB1668 Power Transistor Rohm

Other Datasheets by Kexin Semiconductor

Part Number Description
2SB1628 PNP Silicon Epitaxial Transistor
2SB1643 Silicon PNP epitaxial planar type Transistor
2SB1000 PNP Transistors
2SB1001 Silicon PNP Transistor
2SB1002 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

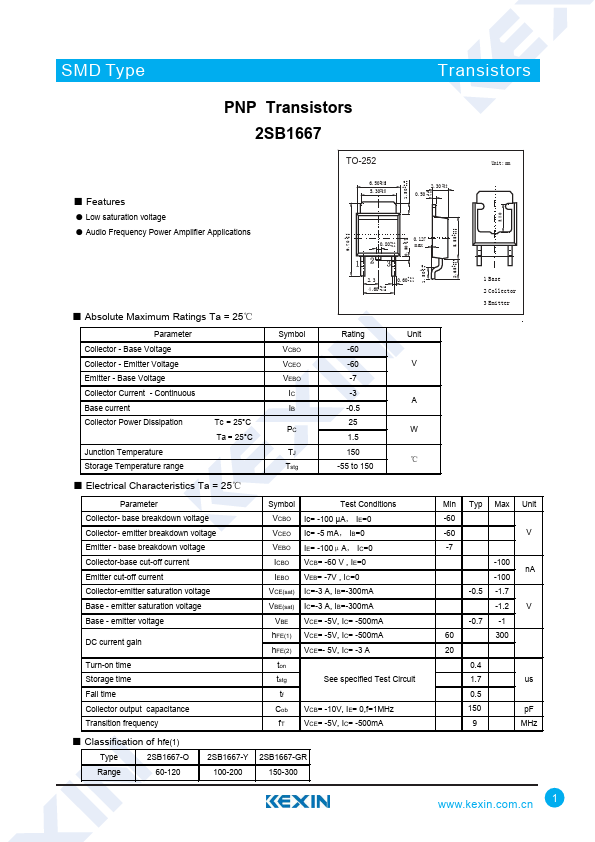

SMD Type Transistors PNP Transistors 2SB1667 ■ Features ● Low saturation voltage ● Audio Frequency Power Amplifier Applications TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30 +0.1 -0.1 0.50 +0.8 -0.7 +0 1.50 .15 -0.15 0.80+0.1 -0.1 0.127 m ax +0 5.55 .15 -0.15 3.80 Unit: mm + 2.65 0.25 -0.1 + 0.50 0.15 -0.15 + 1.50 0.28 -0.1 + 0.2 9 .7 0 -0.2 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Collector - Base Voltage VCBO -60 Collector - Emitter Voltage VCEO -60 V Emitter - Base Voltage VEBO -7 Collector Current - Continuous Base current IC -3 A IB -0.5 Collector Power Dissipation Tc = 25°C 25 PC W Ta = 25°C 1.
