2SB624 - PNP Transistors

Key Features

  • s.
  • High DC current gain. hFE:200 TYP. (VCE=-1V,IC=-100mA).
  • Complimentary to 2SD596. +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junction Temperature Storage Temperature range Symbol Rating.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB624 PNP Transistor NEC
2SB624 Silicon Transistor GME
2SB624 PNP Transistor INCHANGE
2SB624 SILICON PNP EPITAXIAL PLANAR TRANSISTOR AiT Semiconductor
2SB624 PNP Transistor SeCoS

Other Datasheets by Kexin Semiconductor

Part Number Description
2SB624-HF PNP Transistors
2SB1000 PNP Transistors
2SB1001 Silicon PNP Transistor
2SB1002 PNP Transistors
2SB1025 PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

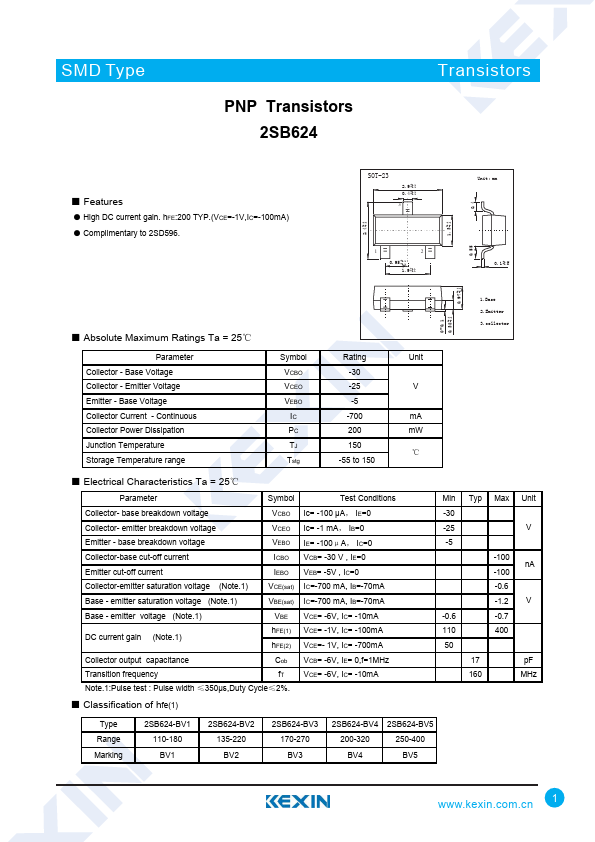

SMD Type PNP Transistors 2SB624 Transistors ■ Features ● High DC current gain. hFE:200 TYP.(VCE=-1V,IC=-100mA) ● Complimentary to 2SD596. +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Unit VCBO -30 VCEO -25 V VEBO -5 IC -700 mA PC 200 mW TJ 150 ℃ Tstg -55 to 150 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.
