2SB736 - PNP Transistors

Key Features

  • s.
  • High DC current gain hFE:200(TYP).
  • Complimentary to 2SD780. +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Unit VCBO -60 V.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB736 PNP SILICON EPITAXIAL TRANSISTOR NEC
2SB736A PNP SILICON EPITAXIAL TRANSISTOR NEC
2SB731 SILICON POWER TRANSISTOR SavantIC
2SB731 PNP Transistor INCHANGE
2SB733 PNP SILICON TRANSISTOR NEC

Other Datasheets by Kexin Semiconductor

Part Number Description
2SB736A PNP Transistors
2SB709A PNP Transistors
2SB709A-HF PNP Transistors
2SB710 PNP Transistors
2SB710A PNP Transistors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

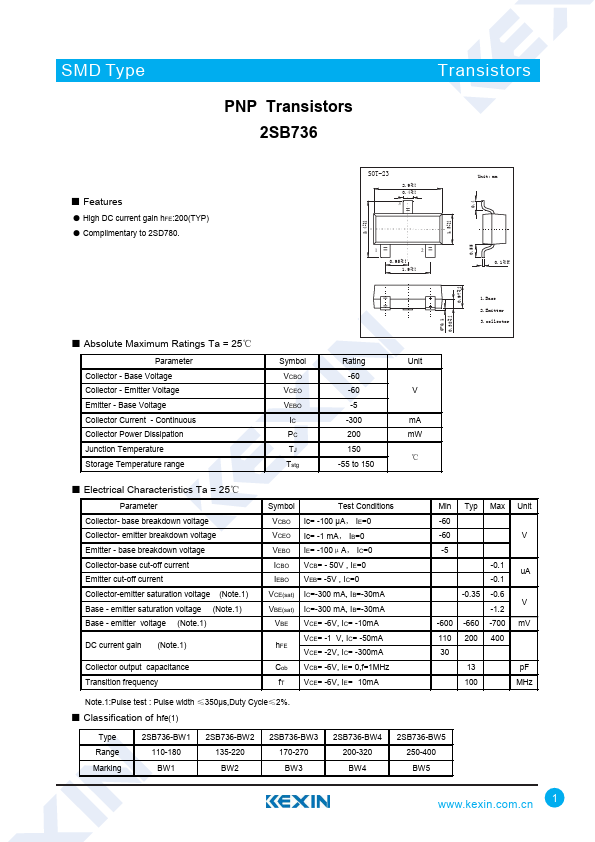

SMD Type PNP Transistors 2SB736 Transistors ■ Features ● High DC current gain hFE:200(TYP) ● Complimentary to 2SD780. +0.1 2.4 -0.1 SOT-23 2.9 +0.1 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.1 +0.1 1.3 -0.1 0.55 0.4 Unit: mm 0.1 +0.05 -0.01 +0.1 0.97 -0.1 ■ Absolute Maximum Ratings Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junction Temperature Storage Temperature range Symbol Rating Unit VCBO -60 VCEO -60 V VEBO -5 IC -300 mA PC 200 mW TJ 150 ℃ Tstg -55 to 150 0-0.1 +0.1 0.38 -0.1 1.Base 2.Emitter 3.
