Kexin Electronics 2SC2780
NPN Transistors
| Part No. | 2SC2780 |
|---|---|
| Datasheet | 2SC2780 Download |
| Manufacturer | Kexin Electronics |
| Description | NPN Transistors |
| Buy | Stock & Price |

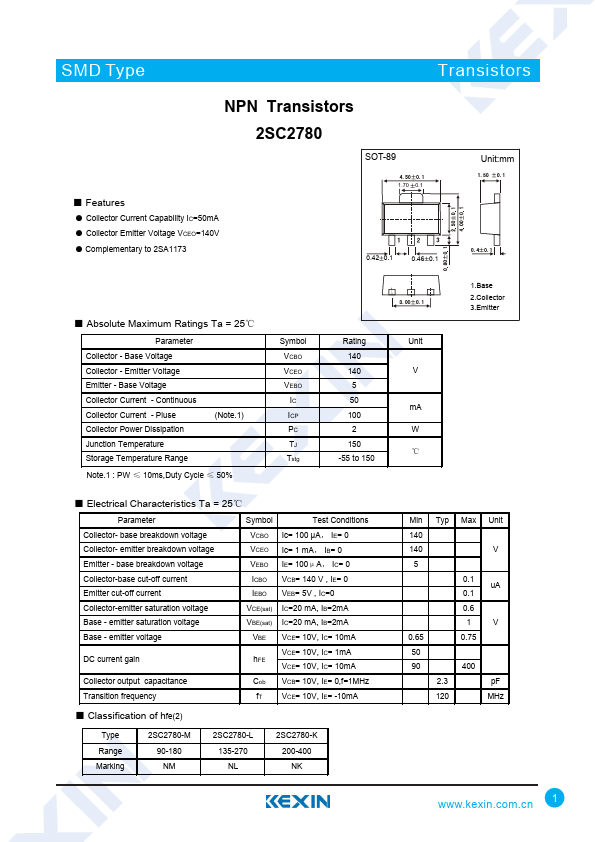

FEATURES
● Collector Current Capability IC=50mA● Collector Emitter Voltage VCEO=140V
● Complementary to 2SA1173 1.70 0.1 0.42 0.1 0.46 0.1
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pluse Collector Power Dissipation Junction Temperature Storage Temperature Range (Note.1) Symbol Rating Unit VCBO 140 VCEO 140 V VEBO 5 IC 50 mA ICP 100 PC 2 W TJ 150 ℃ Tstg -55 to 150 Note.1 : PW ≤ 10ms,Duty Cycle ≤ 50% 1.Base 2.Collector 3.Emitter●
ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Symbol Test Conditions Collector- base breakdown voltage Collector- emitter breakdown voltage VCBO VCEO Ic= 100 μA， IE= 0 Ic= 1 mA， IB= 0 Emitter - base breakdown voltage Collector-base cut-off current VEBO ICBO IE= 100μA， IC= 0 VCB= 140 V , IE= 0 Emitter cut-off current IEBO VEB= 5V , IC=0 Collector-emitter saturation voltage VCE(sat) IC=20 mA, IB=2mA Base - emitter saturation voltage...
