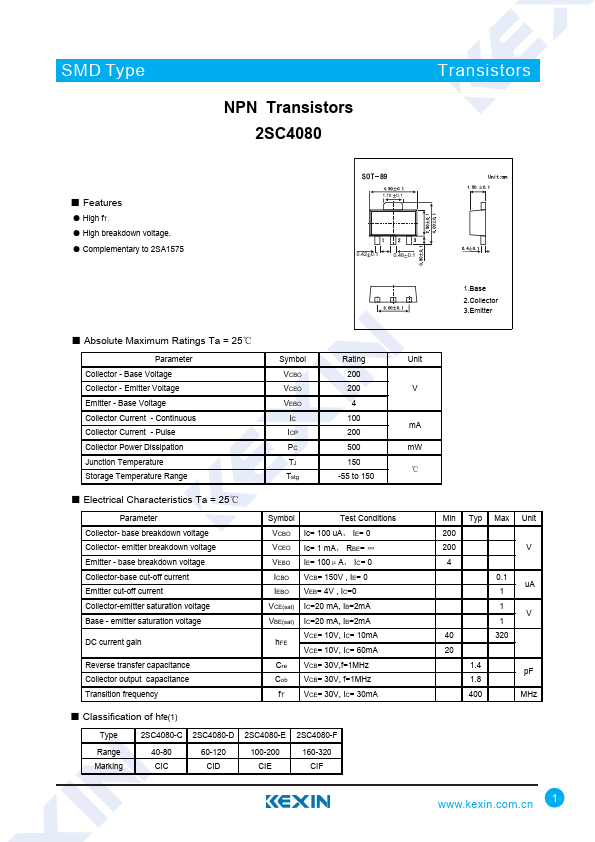

2SC4080 Datasheet PDF

FEATURES

● High fT.
● High breakdown voltage.
● Complementary to 2SA1575 1.70 0.1 0.42 0.1 0.46 0.1 1.Base 2.Collector 3.Emitter
●

ABSOLUTE MAXIMUM RATINGS

Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Current - Pulse Collector Power Dissipation Junction Temperature Storage Temperature Range Symbol Rating Unit VCBO 200 VCEO 200 V VEBO 4 IC 100 mA ICP 200 PC 500 mW TJ 150 ℃ Tstg -55 to 150
●

ELECTRICAL CHARACTERISTICS

Ta = 25℃ Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter - base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage Base - emitter saturation voltage DC current gain Reverse transfer capacitance Collector output capacitance Transition frequency Symbol Test Conditions VCBO Ic= 100 uA， IE= 0 VCEO Ic= 1 mA， RBE= ∞ VEBO IE= 100μA， IC= 0 ICBO VCB= 150V , IE= 0 IEBO VEB= 4V , IC=0 VCE(sat) IC=...
