2SD1611 Datasheet Silicon NPN Triple Diffusion Planar Type Darlington Transistors

Manufacturer: Kexin Semiconductor

Overview: SMD Type Transistors Silicon NPN Triple Diffusion Planar Type Darlington.

Datasheet Details

Part number	2SD1611
Manufacturer	Kexin Semiconductor
File Size	39.35 KB
Description	Silicon NPN Triple Diffusion Planar Type Darlington Transistors
Datasheet	2SD1611-Kexin.pdf

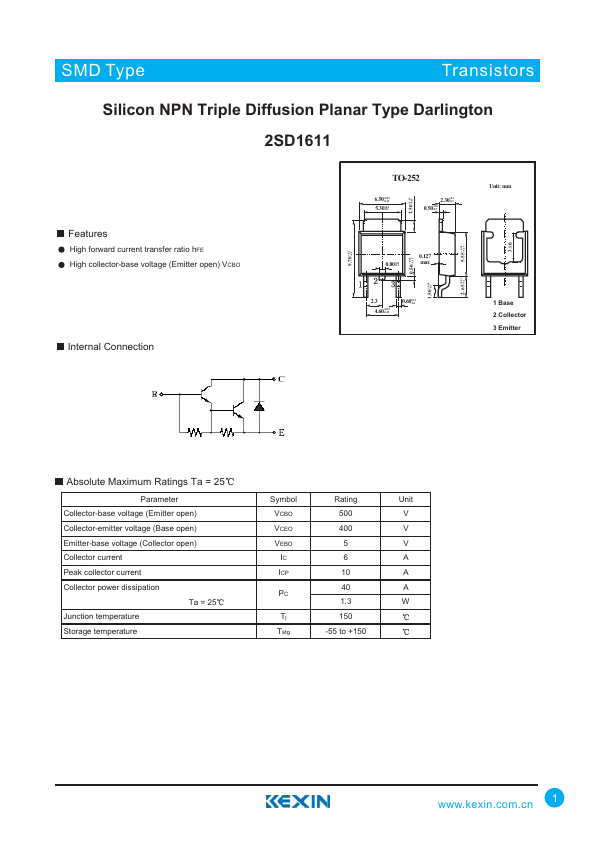

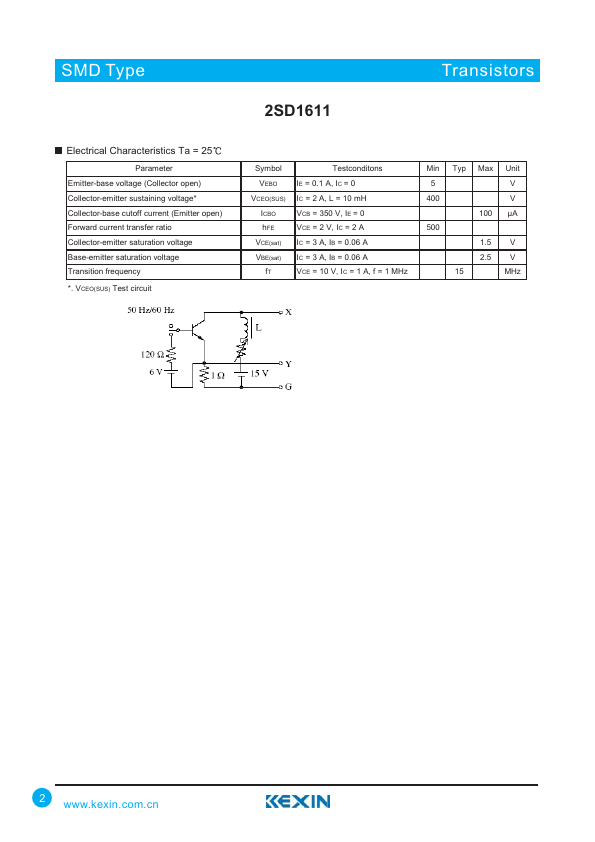

High forward current transfer ratio hFE High collector-base voltage (Emitter open) VCBO + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm + 1.50 0.15 -0.15 + 0 .1 5 5 .5 5 -0.15 0.80+0.1 -0.1 0.127 max 3.80 +0 2.65 .25 -0.1 +0 0.50 .15 -0.15 +0 1.50 .28 -0.1 Internal Connection 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 1 Base 2 Collector 3 Emitter Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage (Emitter open) Collector-emitter vo.

Brand Logo	Part Number	Description	Manufacturer
	2SD1611	Silicon NPN Transistor	Panasonic Semiconductor
