2SD1719 - Silicon NPN Triple Diffusion Planar Type Transistor
Kexin Semiconductor
Key Features
High forward current transfer ratio hFE which has satisfactory linearity High emitter-base voltage (Collector open) VEBO
+ 9.70 0.2 -0.2
TO-252
6.50+0.15 -0.15
5.30+0.2 -0.2
2.30+0.1 -0.1
0.50+0.8 -0.7
+ 1.50 0.15 -0.15
0.80+0.1 -0.1
0.127 max
+ 0.15 0 .5 0 -0.15
+ 0.28 1 .5 0 -0.1
2.3 4.60+0.15
-0.15
0.60+0.1 -0.1
Absolute Maximum Ratings Ta = 25
Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Peak collector current Base current Coll.
Full PDF Text Transcription for 2SD1719 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
2SD1719. For precise diagrams, and layout, please refer to the original PDF.

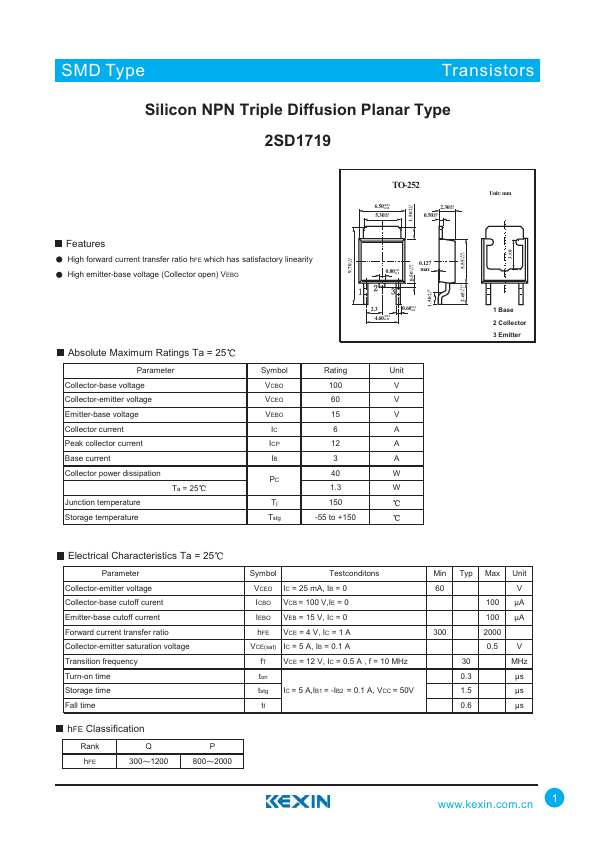

SMD Type Transistors Silicon NPN Triple Diffusion Planar Type 2SD1719 Features High forward current transfer ratio hFE which has satisfactory linearity High emitter-base ...
View more extracted text
transfer ratio hFE which has satisfactory linearity High emitter-base voltage (Collector open) VEBO + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 + 1.50 0.15 -0.15 0.80+0.1 -0.1 0.127 max + 0.15 0 .5 0 -0.15 + 0.28 1 .5 0 -0.1 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Peak collector current Base current Collector power dissipation Ta = 25 Junction temperature Storage temperature Symbol Rating Unit VCBO 100 V VCEO 60 V VEBO 15 V IC 6 A ICP 12 A IB 3 A 40 W PC 1.
