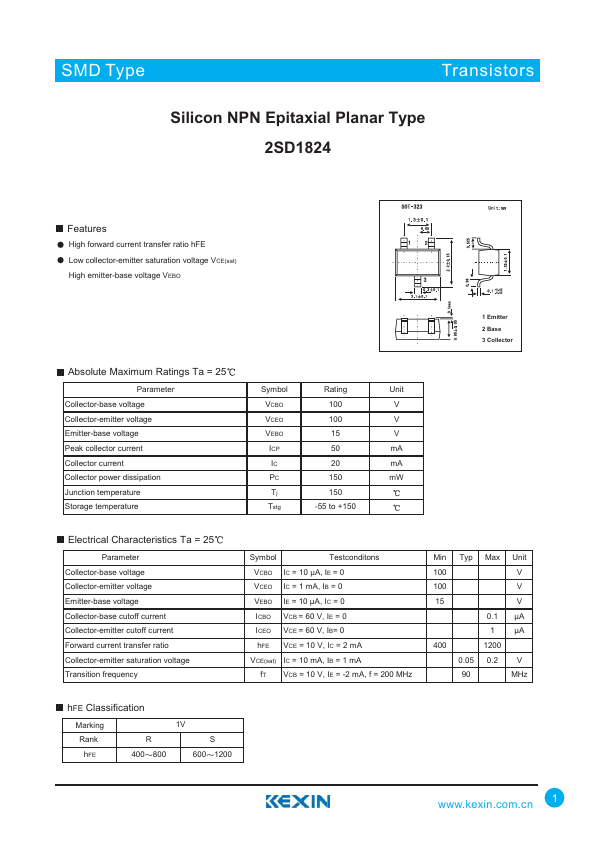

2SD1824
Features
High forward current transfer ratio h FE Low collector-emitter saturation voltage VCE(sat) High emitter-base voltage VEBO
1 Emitter 2 Base 3 Collector
Absolute Maximum Ratings Ta = 25
Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Peak collector current Collector current Collector power dissipation Junction temperature Storage temperature
Symbol
Rating
Unit
VCBO
VCEO
VEBO
50 m A
20 m A
150 m W
Tj
Tstg
-55 to +150
Electrical Characteristics Ta = 25
Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector-base cutoff current Collector-emitter cutoff current Forward current transfer ratio Collector-emitter saturation voltage Transition frequency
Symbol
Testconditons
VCBO IC = 10 ìA, IE = 0
VCEO IC = 1 m A, IB = 0
VEBO IE = 10 ìA, IC = 0
ICBO VCB = 60 V, IE = 0
ICEO VCE = 60 V, IB= 0 h FE VCE = 10 V, IC = 2 m A
VCE(sat) IC = 10 m A, IB = 1 m A f T VCB = 10...
