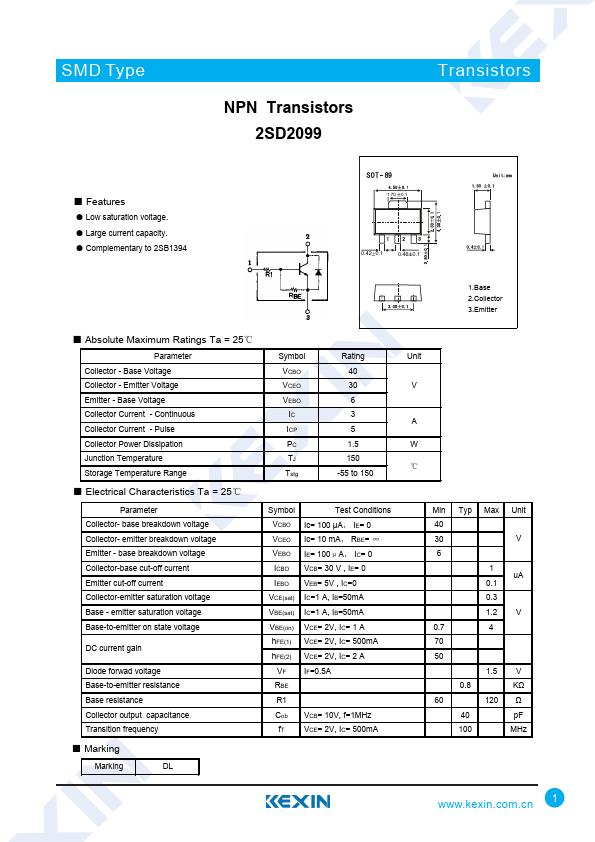

2SD2099
Features
- Low saturation voltage.
- Large current capacity.
- plementary to 2SB1394
1.70 0.1
0.42 0.1
0.46 0.1
1.Base 2.Collector 3.Emitter
- Absolute Maximum Ratings Ta = 25℃
Parameter Collector
- Base Voltage Collector
- Emitter Voltage Emitter
- Base Voltage Collector Current
- Continuous Collector Current
- Pulse Collector Power Dissipation Junction Temperature Storage Temperature Range
- Electrical Characteristics Ta = 25℃
Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter
- base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage Base
- emitter saturation voltage Base-to-emitter on state voltage
DC current gain
Diode forwad voltage Base-to-emitter resistance Base resistance Collector output capacitance Transition frequency
- Marking
Marking
Symbol VCBO VCEO VEBO IC ICP PC TJ Tstg
Rating 40 30 6 3 5 1.5 150
-55 to 150
Symbol
Test Conditions
VCBO Ic= 100 μA， IE=...
