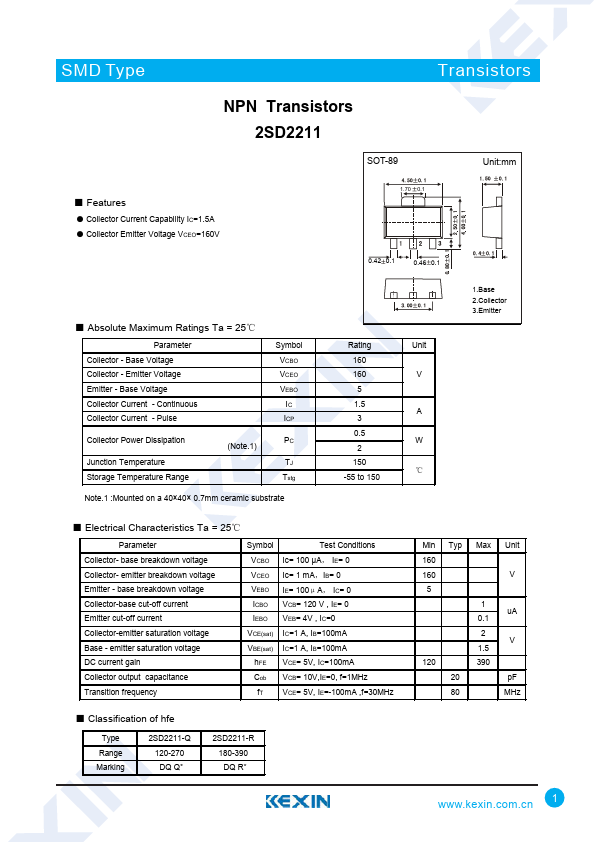

2SD2211
Features
- Collector Current Capability IC=1.5A
- Collector Emitter Voltage VCEO=160V
1.70 0.1
0.42 0.1
0.46 0.1
- Absolute Maximum Ratings Ta = 25℃
Parameter Collector
- Base Voltage Collector
- Emitter Voltage Emitter
- Base Voltage Collector Current
- Continuous Collector Current
- Pulse
Symbol VCBO VCEO VEBO IC ICP
Collector Power Dissipation
Junction Temperature Storage Temperature Range
PC (Note.1)
TJ Tstg
Note.1 :Mounted on a 40×40× 0.7mm ceramic substrate
Rating
Unit
1.5 A
0.5 W
150 ℃
-55 to 150
Unit:mm
1.Base 2.Collector 3.Emitter
- Electrical Characteristics Ta = 25℃
Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter
- base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage Base
- emitter saturation voltage DC current gain Collector output capacitance Transition frequency
Symbol
Test Conditions
VCBO Ic= 100 μA， IE= 0
VCEO Ic= 1 m A，IB=...
