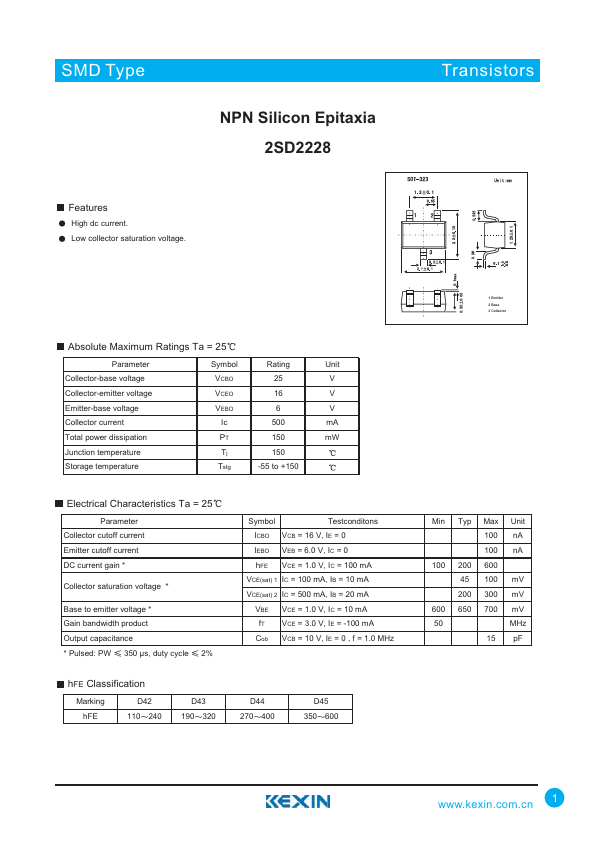

2SD2228
Features
High dc current. Low collector saturation voltage.
Transist Io Crs
Absolute Maximum Ratings Ta = 25
Parameter Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Total power dissipation Junction temperature Storage temperature
Symbol
Rating
Unit
VCBO
VCEO
VEBO
Ic
500 m A
150 m W
Tj
Tstg
-55 to +150
Electrical Characteristics Ta = 25
Parameter Collector cutoff current Emitter cutoff current DC current gain
- Collector saturation voltage
- Base to emitter voltage
- Gain bandwidth product Output capacitance
- Pulsed: PW 350 ìs, duty cycle 2%
Symbol
Testconditons
ICBO VCB = 16 V, IE = 0
IEBO VEB = 6.0 V, IC = 0 h FE VCE = 1.0 V, IC = 100 m A
VCE(sat) 1 IC = 100 m A, IB = 10 m A
VCE(sat) 2 IC = 500 m A, IB = 20 m A
VBE VCE = 1.0 V, IC = 10 m A f T VCE = 3.0 V, IE = -100 m A
Cob VCB = 10 V, IE = 0 , f = 1.0 MHz h FE Classification
Marking h FE
D42 110 240
D43 190 320
D44 270...
