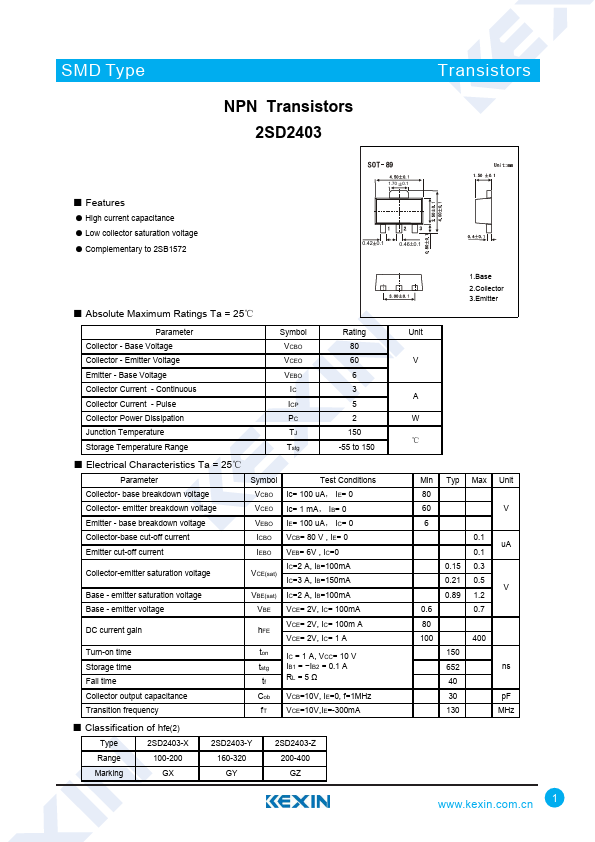

2SD2403
Features
- High current capacitance
- Low collector saturation voltage
- plementary to 2SB1572
1.70 0.1
0.42 0.1
0.46 0.1
- Absolute Maximum Ratings Ta = 25℃
Parameter Collector
- Base Voltage Collector
- Emitter Voltage Emitter
- Base Voltage Collector Current
- Continuous Collector Current
- Pulse Collector Power Dissipation Junction Temperature Storage Temperature Range
Symbol VCBO VCEO VEBO IC ICP PC TJ Tstg
Rating 80 60 6 3 5 2 150
-55 to 150
- Electrical Characteristics Ta = 25℃
Parameter
Symbol
Test Conditions
Collector- base breakdown voltage
VCBO Ic= 100 u A， IE= 0
Collector- emitter breakdown voltage
VCEO Ic= 1 m A， IB= 0
Emitter
- base breakdown voltage
VEBO IE= 100 u A， IC= 0
Collector-base cut-off current
ICBO VCB= 80 V , IE= 0
Emitter cut-off current
IEBO VEB= 6V , IC=0
Collector-emitter saturation voltage
IC=2 A, IB=100m A VCE(sat)
IC=3 A, IB=150m A
Base
- emitter saturation voltage
VBE(sat) IC=2 A, IB=100m A
Base
- emitter...
