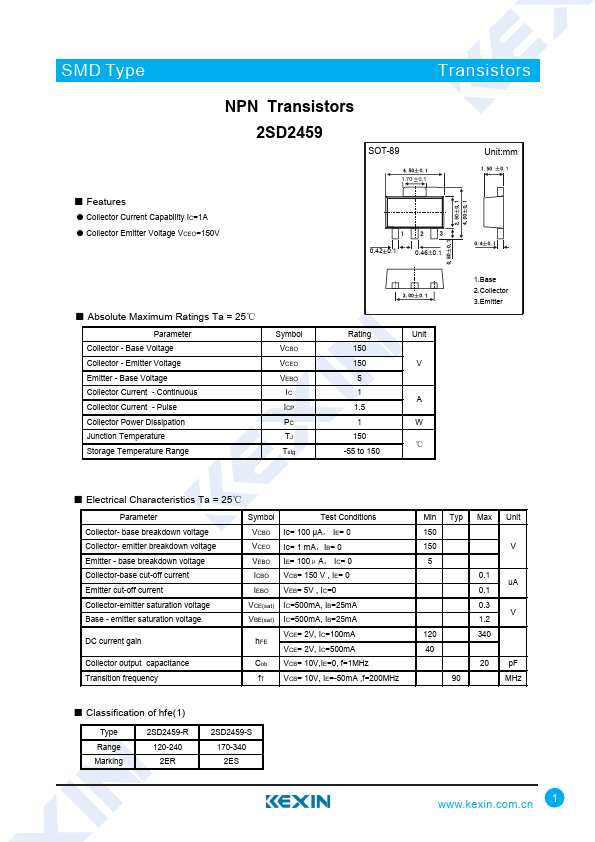

2SD2459
Features
- Collector Current Capability IC=1A
- Collector Emitter Voltage VCEO=150V
1.70 0.1
0.42 0.1
0.46 0.1
- Absolute Maximum Ratings Ta = 25℃
Parameter Collector
- Base Voltage Collector
- Emitter Voltage Emitter
- Base Voltage Collector Current
- Continuous Collector Current
- Pulse Collector Power Dissipation Junction Temperature Storage Temperature Range
Symbol VCBO VCEO VEBO IC ICP PC TJ Tstg
Rating
Unit
1 A
150 ℃
-55 to 150
Unit:mm
1.Base 2.Collector 3.Emitter
- Electrical Characteristics Ta = 25℃
Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter
- base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage Base
- emitter saturation voltage
DC current gain
Collector output capacitance Transition frequency
Symbol
Test Conditions
VCBO Ic= 100 μA， IE= 0
VCEO Ic= 1 m A，IB= 0
VEBO IE= 100μA， IC= 0
ICBO VCB= 150 V , IE= 0
IEBO VEB= 5V ,...
