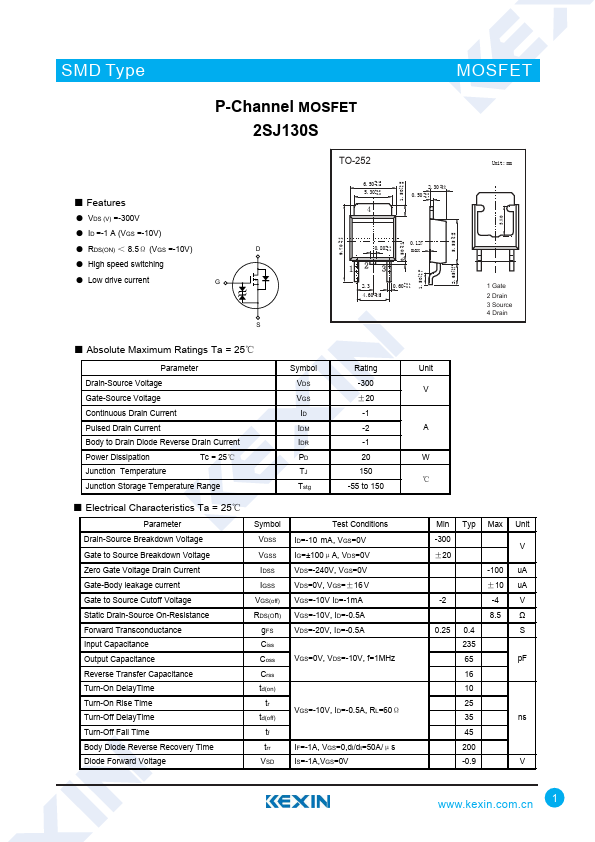

Datasheet Summary
SMD Type
MOSFET
P-Channel MOSFET 2SJ130S
TO-252
Unit: mm
- Features
- VDS (V) =-300V
- ID =-1 A (VGS =-10V)
- RDS(ON) ＜ 8.5Ω (VGS =-10V)
- High speed switching
- Low drive current
+ 0.2 9 .7 0 -0.2
6.50+0.15 -0.15
5.30+0.2 -0.2
+ 0.15 1 .5 0 -0.15
2.30 +0.1 -0.1
0.50 +0.8 -0.7
0.80+0.1 -0.1
0.127 m ax
+ 0.50 0.15 -0.15
+ 1.50 0.28 -0.1
2.3 4 .60 +0.15
-0.15
0.60+ 0.1
- 0.1
+ 2.65 0.25 -0.1
+ 0.15 5 .5 5 -0.15
1 Gate 2 Drain 3 Source 4 Drain
-...
