2SJ302 - Mos Field Effect Power Transistor

Key Features

  • Low on-state resistance RDS(on) 0.1 (VGS=-10V,ID=-8A) RDS(on) 0.24 (VGS=-4V,ID=-6A) Low Ciss Ciss=1200PF TYP. Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current (DC) Drain current(pulse).
  • Power dissipation Channel temperature Storage temperature.
  • PW 10 s; d 1%. Electrical Characteristics Ta = 25 Parameter Drain cut-off current Gate leakage current Gate cut-off voltage Forward transfer admittance Drain to source on-state resistance In.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ302 P-Channel MOSFET NEC
2SJ302-Z SWITCHING P-CHANNEL POWER MOSFET NEC
2SJ302-Z 60V P-Channel MOSFET VBsemi
2SJ303 P-Channel MOSFET NEC
2SJ303 60V P-Channel MOSFET VBsemi

Other Datasheets by Kexin Semiconductor

Part Number Description
2SJ302-ZJ P-Channel MOSFET
2SJ3021 P-Channel Enhancement MOSFET
2SJ3001 P-Channel MOSFET
2SJ3001DS P-Channel Enhancement MOSFET
2SJ3031DS P-Channel Enhancement MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

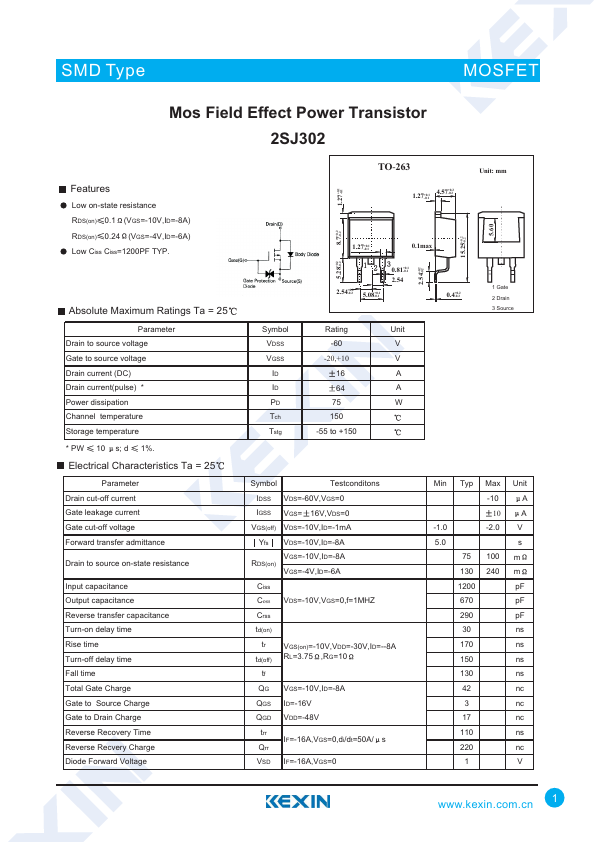

SMD Type MOSFET Mos Field Effect Power Transistor 2SJ302 Features Low on-state resistance RDS(on) 0.1 (VGS=-10V,ID=-8A) RDS(on) 0.24 (VGS=-4V,ID=-6A) Low Ciss Ciss=1200PF TYP. Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current (DC) Drain current(pulse) * Power dissipation Channel temperature Storage temperature * PW 10 s; d 1%.
