2SJ528S - Hight Speed Power Switching

Key Features

  • Low on-resistance RDS(on) = 0.17 typ. High speed switching 4V gate drive devices. +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.1 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current (DC) Drain current(pulse).
  • Power.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SJ528S Silicon P-Channel MOSFET Hitachi Semiconductor
2SJ528 Silicon P-Channel MOSFET Hitachi Semiconductor
2SJ528L Silicon P-Channel MOSFET Hitachi Semiconductor
2SJ520 P-Channel MOSFET Sanyo Semicon Device
2SJ522 P-Channel MOSFET Sanyo Semicon Device

Other Datasheets by Kexin Semiconductor

Part Number Description
2SJ527S Hight Speed Power Switching
2SJ529S Hight Speed Power Switching
2SJ506S P-Channel MOSFET
2SJ530S Hight Speed Power Switching
2SJ598 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

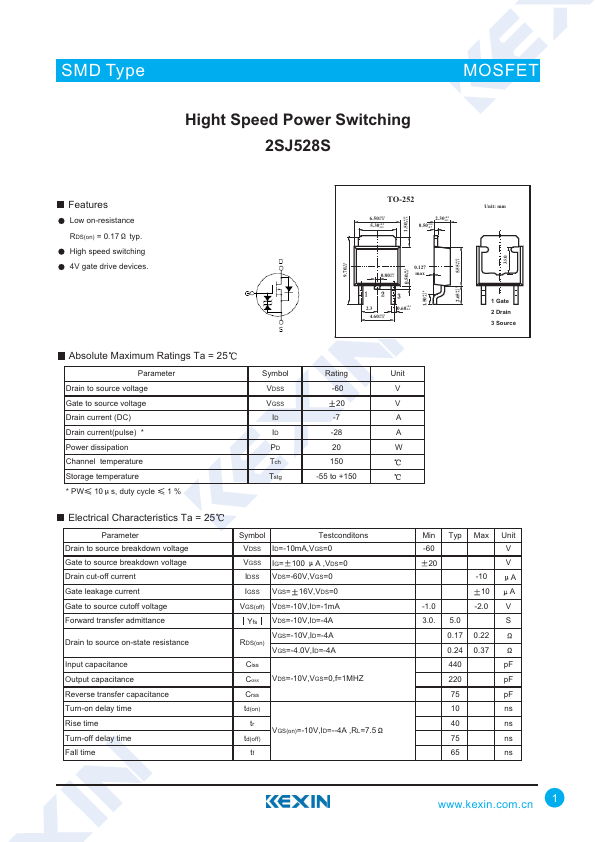

SMD Type Hight Speed Power Switching 2SJ528S MOSFICET Features Low on-resistance RDS(on) = 0.17 typ. High speed switching 4V gate drive devices. +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.
