2SK1151S - Silicon N-Channel MOSFET

Key Features

  • Low on-resistance High speed switching Low drive current No secondary breakdown Suitable for switching regulator and DC-DC converter +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.1 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Dr.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK1151S Silicon N-Channel MOSFET Hitachi Semiconductor
2SK1151 Silicon N-Channel MOSFET Hitachi Semiconductor
2SK1151L Silicon N-Channel MOSFET Hitachi Semiconductor
2SK1152 Silicon N-Channel MOSFET Hitachi Semiconductor
2SK1152L Silicon N-Channel MOSFET Hitachi Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK1152S Silicon N-Channel MOSFET
2SK1133 N-Channel MOSFET
2SK1254S Silicon N-Channel MOSFET
2SK1273 N-Channel MOSFET
2SK1284 MOS Field Effect Power Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

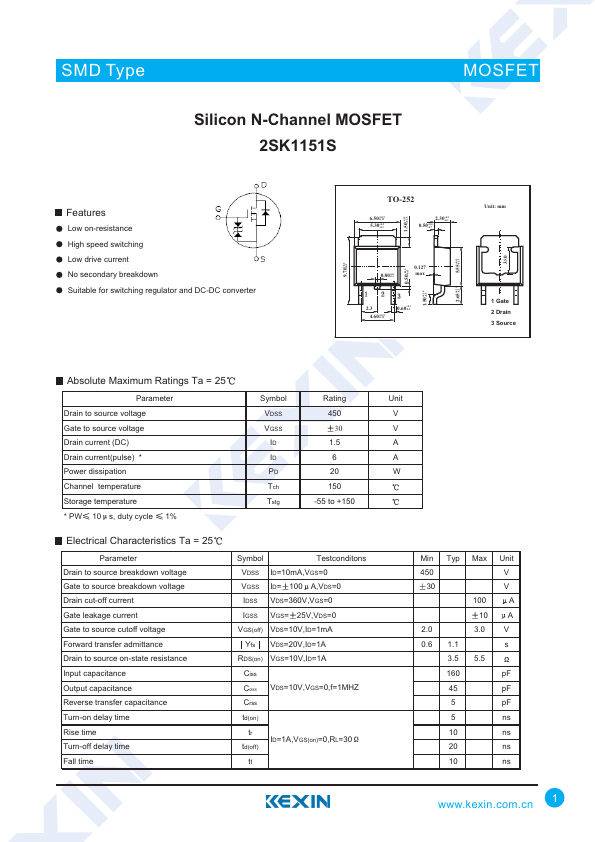

SMD Type Silicon N-Channel MOSFET 2SK1151S MOSFICET Features Low on-resistance High speed switching Low drive current No secondary breakdown Suitable for switching regulator and DC-DC converter +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.1 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current (DC) Drain current(pulse) * Power dissipation Channel temperature Storage temperature * PW 10 s, duty cycle 1% Symbol VDSS VGSS ID ID PD Tch Tstg Rating 450 30 1.
