2SK1592 Datasheet | Kexin Semiconductor

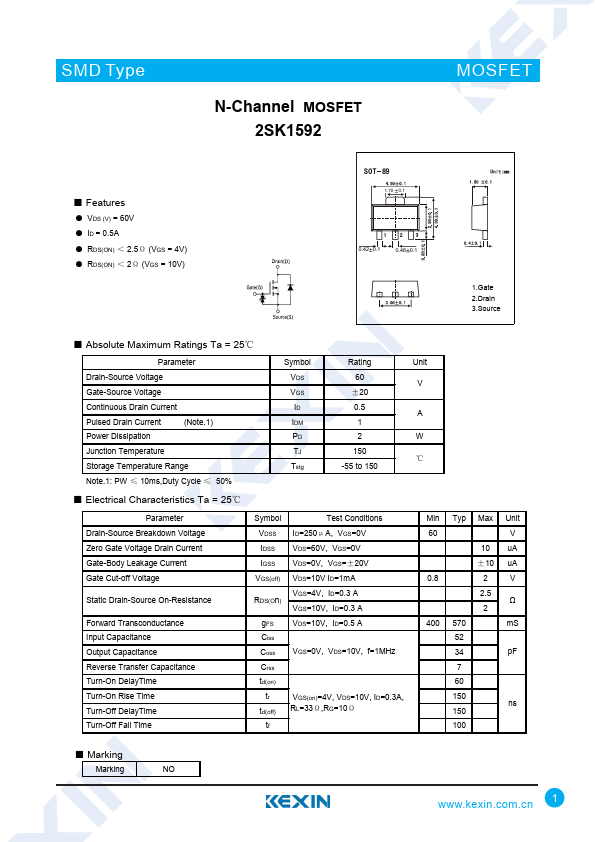

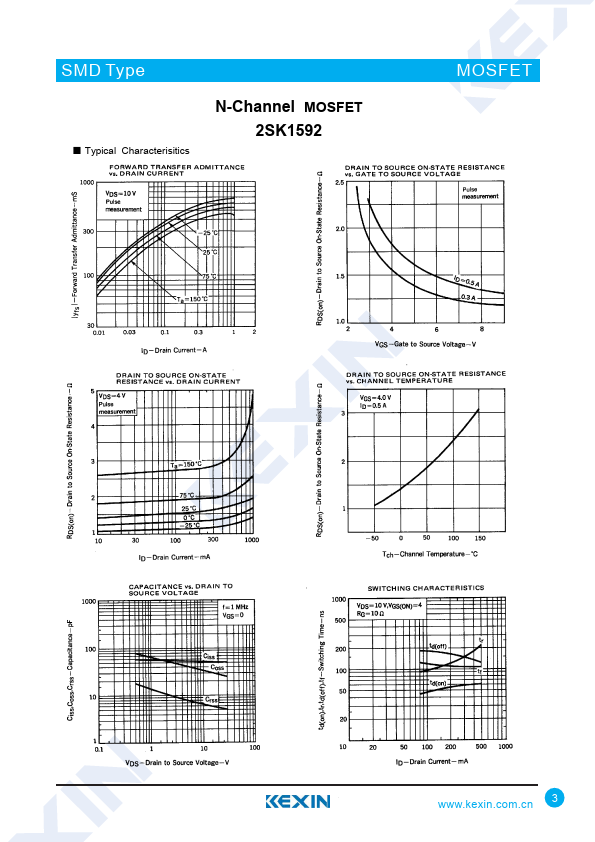

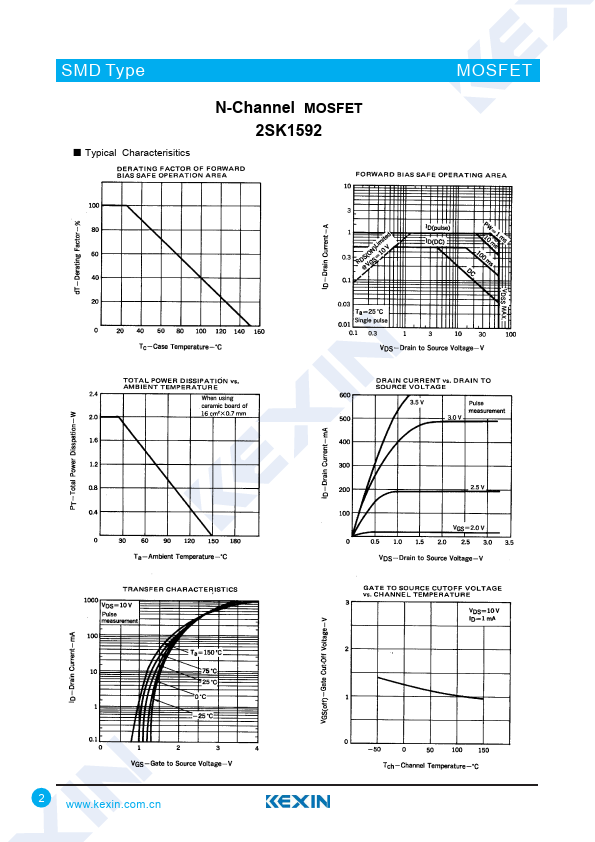

Features - VDS (V) = 60V - ID = 0.5A - RDS(ON) ＜ 2.5Ω (VGS = 4V) - RDS(ON) ＜ 2Ω (VGS = 10V) 1.70 0.1 0.42 0.1 0.46 0.1 1.Gate 2.Drain 3.Source - Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Power Dissipation Junction Temperature Storage Temperature Range Note.1: PW ≤ 10ms,Duty Cycle ≤ 50% Symbol Rating Unit ±20 ℃ Tstg -55 to 150 - Electrical Characteristics Ta = 25℃ Parameter Drain-Source Breakdown Voltage Zero Gate Voltage Drain Current Gate-Body Leakage Current Gate Cut-off Voltage Static Drain-Source On-Resistance Forward Transconductance Input Capacitance Output Capacitance Reverse Transfer Capacitance Turn-On Delay Time Turn-On Rise Time Turn-Off Delay Time Turn-Off Fall Time Symbol Test Conditions Min VDSS ID=250μA,...
