2SK2869-ZJ - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 20 A (VGS = 10V).
  • RDS(ON) ＜ 45mΩ (VGS = 10V).
  • RDS(ON) ＜ 70mΩ (VGS = 4V).
  • High speed switching D G S.
  • Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Body to Drain Diode Reverse Drain Current Avalanche Current (Note.2) Power Dissipation (Note.3) Avalanche Energy (Note.2) Junction Temperature Storage Temperature Range Symbol Rating Unit.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK2869 N-Channel MOSFET Hitachi Semiconductor
2SK2869 Silicon N Channel MOS FET Renesas Technology
2SK2869L Silicon N Channel MOS FET Renesas Technology
2SK2869S Silicon N Channel MOS FET Renesas Technology
2SK2862 N-Channel MOSFET Toshiba Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK2869 N-Channel Silicon MOSFET
2SK2857 MOS Field Effect Transistor
2SK2033 N-Channel MOSFET
2SK2059S Silicon N-Channel MOSFET
2SK2111 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

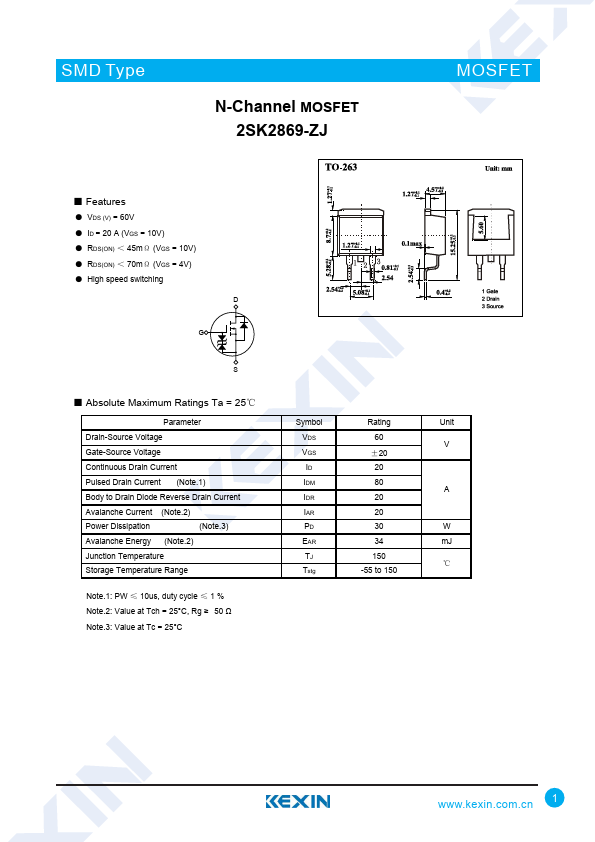

SMD Type N-Channel MOSFET 2SK2869-ZJ MOSFET ■ Features ● VDS (V) = 60V ● ID = 20 A (VGS = 10V) ● RDS(ON) ＜ 45mΩ (VGS = 10V) ● RDS(ON) ＜ 70mΩ (VGS = 4V) ● High speed switching D G S ■ Absolute Maximum Ratings Ta = 25℃ Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current (Note.1) Body to Drain Diode Reverse Drain Current Avalanche Current (Note.2) Power Dissipation (Note.3) Avalanche Energy (Note.2) Junction Temperature Storage Temperature Range Symbol Rating Unit VDS 60 V VGS ±20 ID 20 IDM 80 A IDR 20 IAR 20 PD 30 W EAR 34 mJ TJ 150 ℃ Tstg -55 to 150 Note.1: PW ≤ 10us, duty cycle ≤ 1 % Note.2: Value at Tch = 25°C, Rg ≥ 50 Ω Note.3: Value at Tc = 25°C www.kexin.com.
