2SK3000 - N-Channel Enhancement MOSFET

Key Features

  • VDS=20V,RDS(ON)=40m @VGS=4.5V,ID=5.0A VDS=20V,RDS(ON)=60m @VGS=2.5V,ID=4.0A VDS=20V ,RDS(ON)=75m @VGS=1.8V,ID=1.0A +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tj=125 ć Pulsed Drain Current Power Dissipation Thermal Resistance.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3000 Silicon N-Channel MOSFET Hitachi Semiconductor
2SK3000 Silicon N-Channel MOSFET Renesas Technology
2SK300 N-Channel Silicon MOSFET Sony Corporation
2SK3001 GaAs HEMT Low Noise Amplifier Hitachi Semiconductor
2SK3003 MOSFET Sanken

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3012DSE N-Channel MOSFET
2SK3018 N-Channel MOSFET
2SK3019 N-Channel MOSFET
2SK3022 Silicon N-Channel Power F-MOSFET
2SK3024 Silicon N-Channel Power F-MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

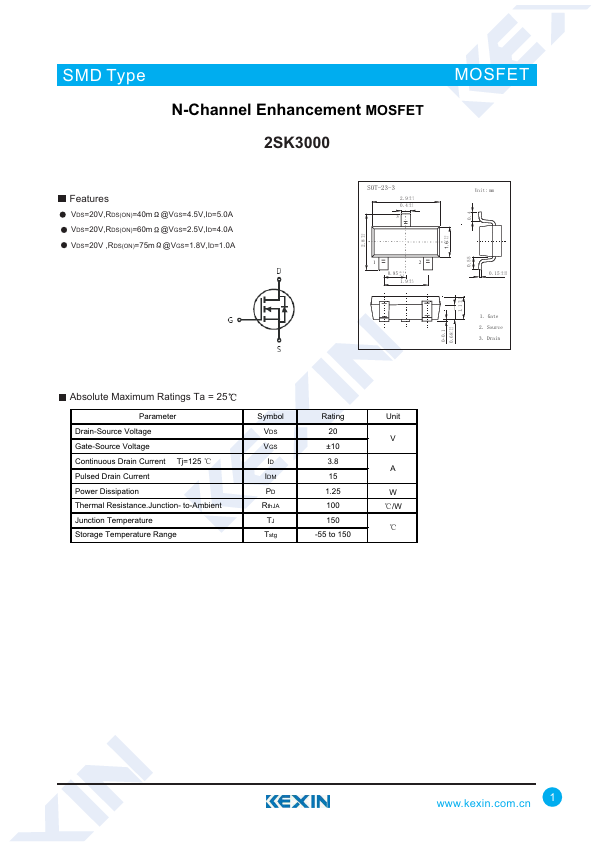

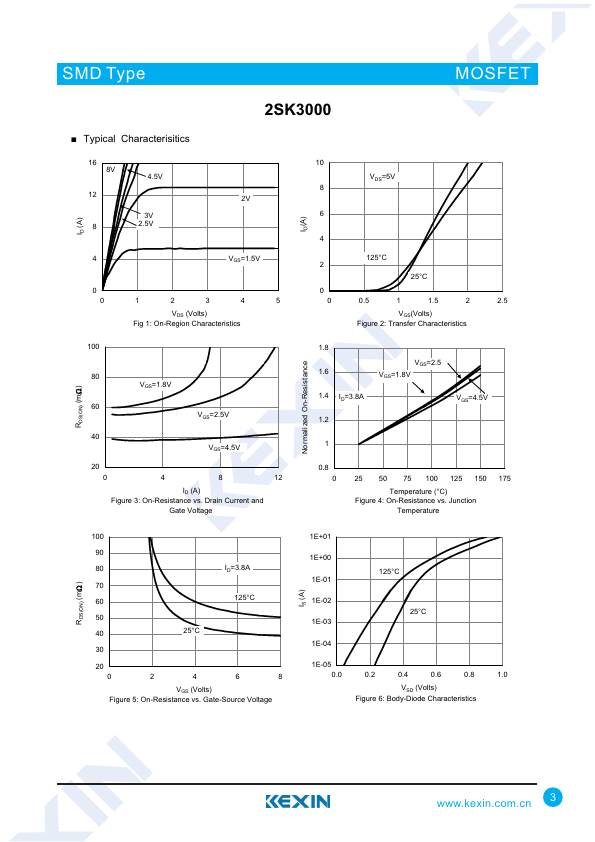

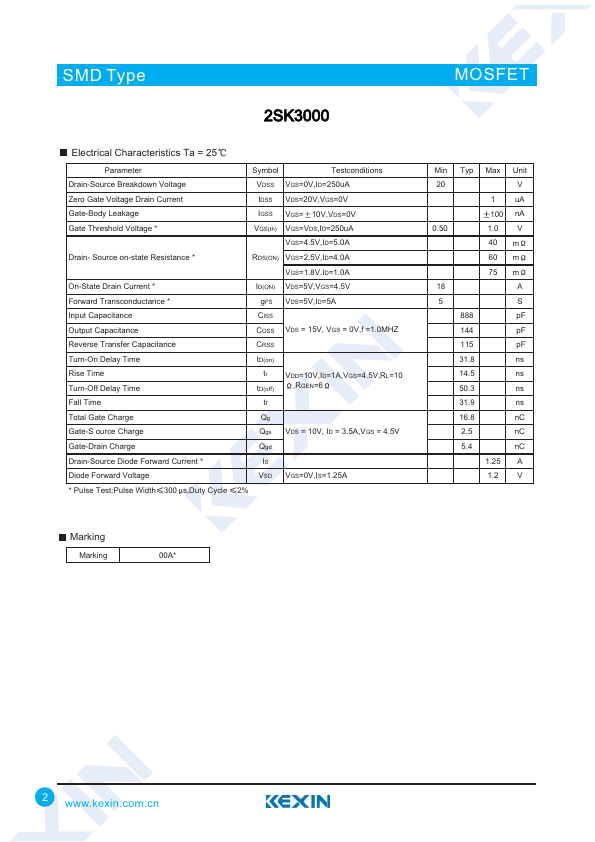

SMD Type N-Channel Enhancement MOSFET 2SK3000 MOSFIECT Features VDS=20V,RDS(ON)=40m @VGS=4.5V,ID=5.0A VDS=20V,RDS(ON)=60m @VGS=2.5V,ID=4.0A VDS=20V ,RDS(ON)=75m @VGS=1.8V,ID=1.0A +0.2 2.8 -0.1 SOT-23-3 2.9 +0.2 -0.1 0.4 +0.1 -0.1 3 1 2 0.95 +0.1 -0.1 1.9 +0.1 -0.2 +0.2 1.6 -0.1 +0.2 1.1 -0.1 0.55 0.4 Unit: mm 0.15 +0.02 -0.02 1. Gate 2. Source 3. Drain 0-0.1 +0.1 0.68 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Tj=125 ć Pulsed Drain Current Power Dissipation Thermal Resistance.Junction- to-Ambient Junction Temperature Storage Temperature Range Symbol VDS VGS ID IDM PD RthJA TJ Tstg Rating 20 ±10 3.8 15 1.25 100 150 -55 to 150 Unit V A W ć/W ć www.kexin.com.
