2SK3022 - Silicon N-Channel Power F-MOSFET

Key Features

  • Avalanche energy capacity guaranteed High-speed switching Low ON-resistance No secondary breakdown Low-voltage drive High electrostatic breakdown voltage +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 3.80 +0.25 2.65 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3022 Silicon N-Channel Power F-MOS FET Panasonic Semiconductor
2SK302 Silicon N Channel MOS Type Field Effect Transistor Toshiba Semiconductor
2SK3023 Silicon N-Channel Power F-MOS FET Panasonic Semiconductor
2SK3024 Silicon N-Channel Power F-MOS FET Panasonic Semiconductor
2SK3025 Silicon N-channel power MOS FET Panasonic Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3024 Silicon N-Channel Power F-MOSFET
2SK3024-Z N-Channel MOSFET
2SK3025 Silicon N-Channel Power F-MOSFET
2SK3012DSE N-Channel MOSFET
2SK3018 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

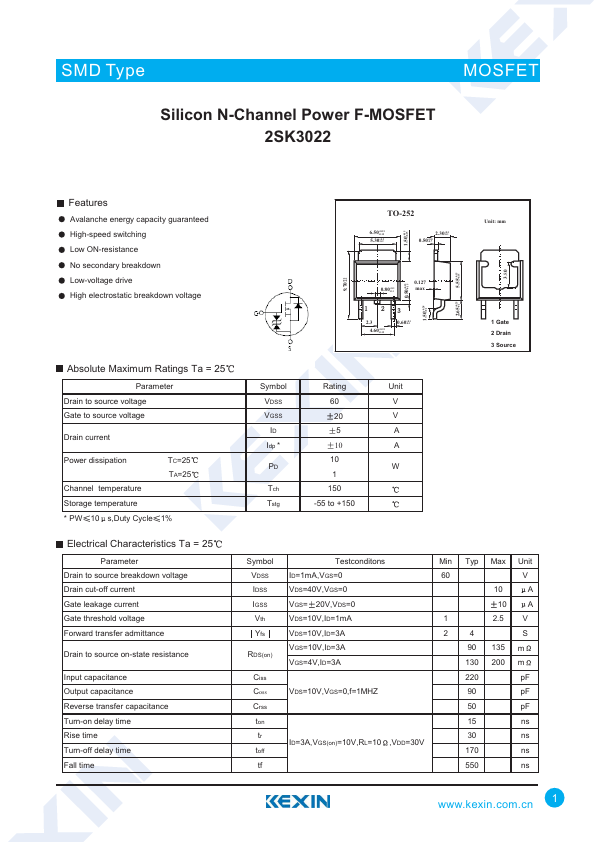

SMD Type MOSFICET Silicon N-Channel Power F-MOSFET 2SK3022 Features Avalanche energy capacity guaranteed High-speed switching Low ON-resistance No secondary breakdown Low-voltage drive High electrostatic breakdown voltage +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 3.80 +0.25 2.65 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.
