2SK3225 - N-Channel MOSFET

Key Features

  • s.
  • VDS (V) = 60V.
  • ID = 34 A (VGS = 10V).
  • RDS(ON) ＜ 18mΩ (VGS = 10V).
  • RDS(ON) ＜ 27mΩ (VGS = 4V).
  • Low input capacitance Ciss = 2100 pF TYP + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 0.15 1 .5 0 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 0.15 5 .5 5 -0.15 +0 0.50 .15 -0.15 +0 1.50 .28 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 +0 2.65 .25 -0.1 1 Gate 2 Drain 3 Source 4 Drain.
  • Absolute Maximum Ratings Ta = 25℃ Pa.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3225 N-Channel MOSFET NEC
2SK322 N-Channel MOSFET Hitachi Semiconductor
2SK3221 N-Channel MOSFET Transistor Inchange Semiconductor
2SK3221-AZ N-Channel MOSFET Transistor Inchange Semiconductor
2SK3224 N-Channel MOSFET NEC

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3224 MOS Field Effect Transistor
2SK3224-Z N-Channel MOSFET
2SK3269 N-Channel Enhacement Mode MOSFET
2SK3269-ZJ N-Channel MOSFET
2SK3274S Slilicon N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

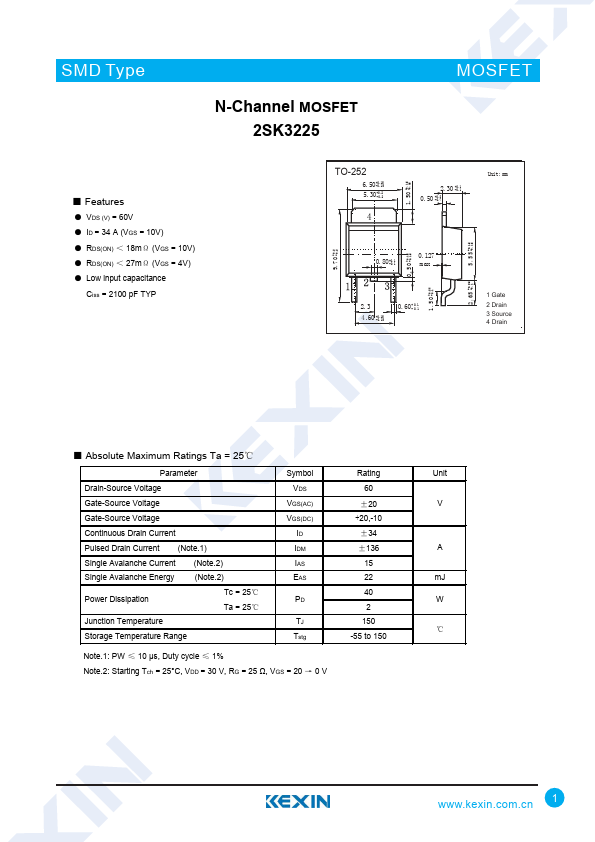

SMD Type N-Channel MOSFET 2SK3225 MOSFET ■ Features ● VDS (V) = 60V ● ID = 34 A (VGS = 10V) ● RDS(ON) ＜ 18mΩ (VGS = 10V) ● RDS(ON) ＜ 27mΩ (VGS = 4V) ● Low input capacitance Ciss = 2100 pF TYP + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 4 + 0.15 1 .5 0 -0.15 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 0.15 5 .5 5 -0.15 +0 0.50 .15 -0.15 +0 1.50 .28 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 +0 2.65 .25 -0.1 1 Gate 2 Drain 3 Source 4 Drain ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Drain-Source Voltage VDS 60 Gate-Source Voltage VGS(AC) ±20 V Gate-Source Voltage VGS(DC) +20,-10 Continuous Drain Current ID ±34 Pulsed Drain Current (Note.1) IDM ±136 A Single Avalanche Current (Note.
