2SK3274S - Slilicon N-Channel MOSFET

Key Features

  • Low on-resistance RDS(on) = 10 m typ. 4.5 V gate drive device High speed switching +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 3.80 +0.25 2.65 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation Channel temperature.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3274 Slilicon N-Channel MOSFET Renesas Technology
2SK3270-01 N-Channel MOSFET Transistor Inchange Semiconductor
2SK3270-01 N-Channel MOSFET Fuji Electric
2SK3271 N-Channel MOSFET INCHANGE
2SK3271-01 N-Channel MOSFET Fuji Electric

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3224 MOS Field Effect Transistor
2SK3224-Z N-Channel MOSFET
2SK3225 N-Channel MOSFET
2SK3269 N-Channel Enhacement Mode MOSFET
2SK3269-ZJ N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

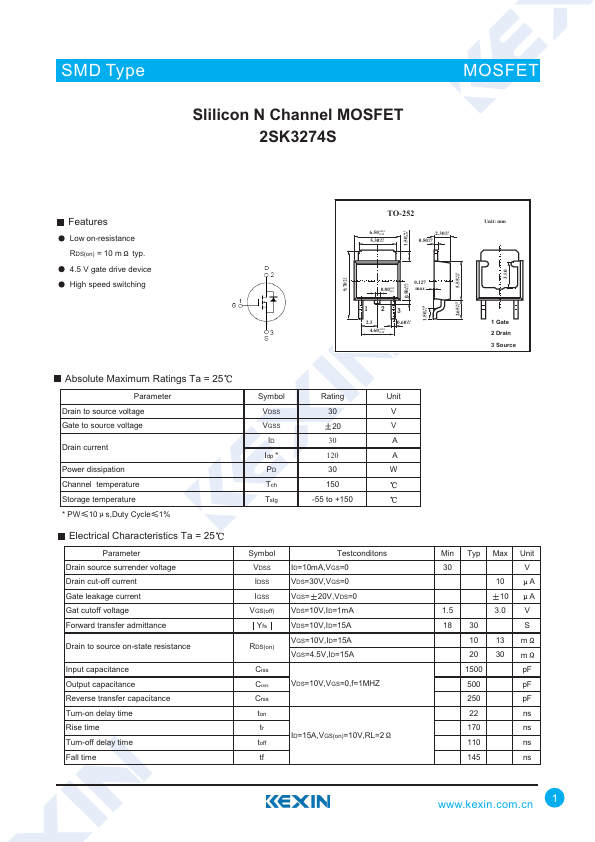

SMD Type Slilicon N Channel MOSFET 2SK3274S MOSFICET Features Low on-resistance RDS(on) = 10 m typ. 4.5 V gate drive device High speed switching +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 3.80 +0.25 2.65 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 2.3 4.60+0.15 -0.15 0.60+0.1 -0.
