2SK3295 - MOS Field Effect Transistor

Key Features

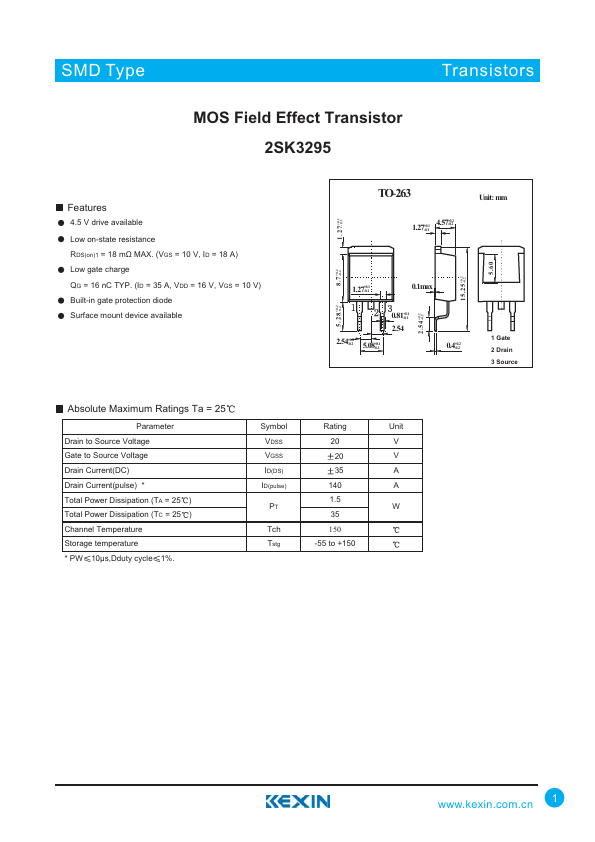

  • 4.5 V drive available Low on-state resistance RDS(on)1 = 18 mÙ MAX. (VGS = 10 V, ID = 18 A) Low gate charge QG = 16 nC TYP. (ID = 35 A, VDD = 16 V, VGS = 10 V) Built-in gate protection diode Surface mount device available + 5 .2 8 0.2 -0.2 + 8 .7 0.2 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm + 1 .2 7 0.1 -0.1 5.60 + 0 .2 -0.2 5 1.27+0.1 -0.1 0.1max +0.2 2.54-0.2 +0.1 5.08-0.1 0.81+0.1 -0.1 2.54 + 2 .5 4 0.2 -0.2 0.4+0.2 -0.2 1 5 . 2 1 Gate 2 Drain 3 Source Abso.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3295 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK3290 N-Channel MOSFET Hitachi Semiconductor
2SK3291 N-Channel MOSFET Sanyo Semicon Device
2SK3292 N-Channel MOSFET Sanyo Semicon Device
2SK3293 N-Channel MOSFET Sanyo Semicon Device

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3294 MOS Field Effect Transistor
2SK3296 MOS Field Effect Transistor
2SK3224 MOS Field Effect Transistor
2SK3224-Z N-Channel MOSFET
2SK3225 N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

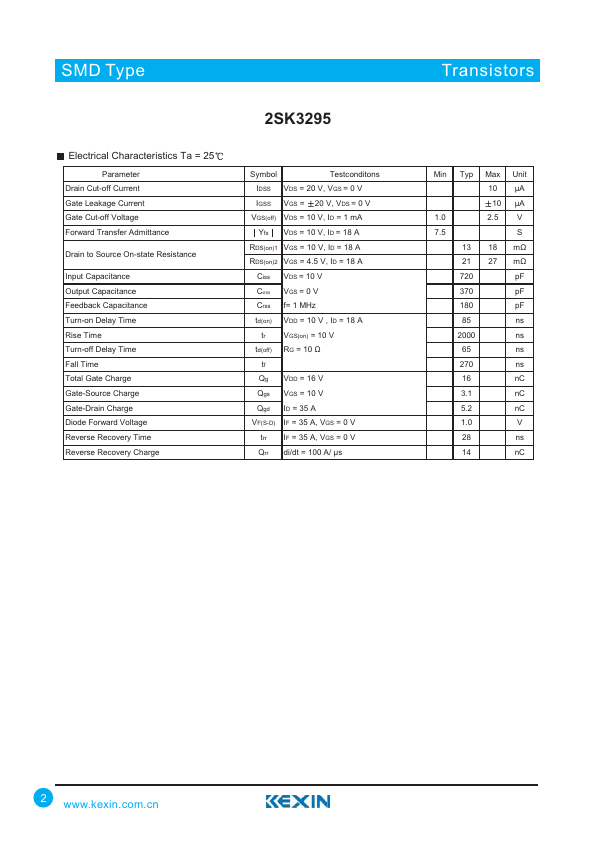

SMD Type TransistIoCrs MOS Field Effect Transistor 2SK3295 Features 4.5 V drive available Low on-state resistance RDS(on)1 = 18 mÙ MAX. (VGS = 10 V, ID = 18 A) Low gate charge QG = 16 nC TYP. (ID = 35 A, VDD = 16 V, VGS = 10 V) Built-in gate protection diode Surface mount device available + 5 .2 8 0.2 -0.2 + 8 .7 0.2 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm + 1 .2 7 0.1 -0.1 5.60 + 0 .2 -0.2 5 1.27+0.1 -0.1 0.1max +0.2 2.54-0.2 +0.1 5.08-0.1 0.81+0.1 -0.1 2.54 + 2 .5 4 0.2 -0.2 0.4+0.2 -0.2 1 5 .
