2SK3377 - MOS Field Effect Transistor

Key Features

  • Low on-resistance RDS(on)1 = 44 m MAX. (VGS = 10 V, ID = 10 A) RDS(on)2 = 78 m MAX. (VGS = 4.0 V, ID = 10 A) Low Ciss : Ciss = 760 pF TYP. Built-in gate protection diode +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 +0.15 1.50 -0.15 +0.15 0.50 -0.15 +0.28 1.50 -0.1 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25 TA.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3377 N-Channel MOSFET NEC
2SK3371 N-Channel MOSFET Toshiba Semiconductor
2SK3372 Silicon N-Channel Junction FET Panasonic
2SK3373 N-Channel MOSFET Toshiba Semiconductor
2SK3374 N-Channel MOSFET Panasonic

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3322 MOSFET
2SK3353 MOS Field Effect Transistor
2SK3354 MOS Field Effect Transistor
2SK3355 MOS Field Effect Transistor
2SK3365 MOS Field Effect Transistor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

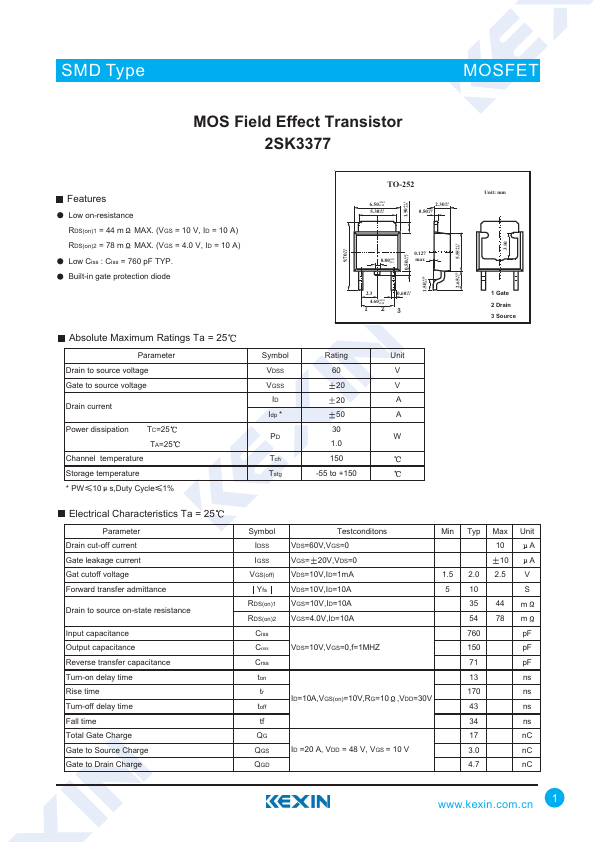

SMD Type MOSFICET MOS Field Effect Transistor 2SK3377 Features Low on-resistance RDS(on)1 = 44 m MAX. (VGS = 10 V, ID = 10 A) RDS(on)2 = 78 m MAX. (VGS = 4.0 V, ID = 10 A) Low Ciss : Ciss = 760 pF TYP. Built-in gate protection diode +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 +0.15 1.50 -0.15 +0.15 0.50 -0.15 +0.28 1.50 -0.1 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25 TA=25 Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% Symbol Rating Unit VDSS 60 V VGSS 20 V ID 20 A Idp * 50 A 30 PD W 1.0 Tch 150 Tstg -55 to +150 +0.25 2.65 -0.1 +0.15 5.55 -0.
