2SK3402-Z - N-Channel MOSFET

Key Features

  • s.
  • VDS S = 60V.
  • ID = 36 A (VGS = 10V).
  • RDS(ON) ＜ 15mΩ (VGS = 10V).
  • RDS(ON) ＜ 22mΩ (VGS = 4V).
  • Low Ciss : Ciss = 3200 pF TYP. Drain Gate Body Diode Gate Protection Source Diode + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 1.50 0.15 -0.15 3.80 + 0.15 5 .5 5 -0.15 +0 0.50 .15 -0.15 +0 1.50 .28 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 +0 2.65 .25 -0.1 1 Gate 2 Drain 3 Source.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3402 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK3403 N-Channel MOSFET Toshiba Semiconductor
2SK3404 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK3405 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK3407 N-Channel MOSFET Toshiba Semiconductor

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3402 MOS Field Effect Transistor
2SK3404 MOS Field Effect Transistor
2SK3405 MOS Field Effect Transistor
2SK3424 MOS Field Effect Transistor
2SK3424-ZJ N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

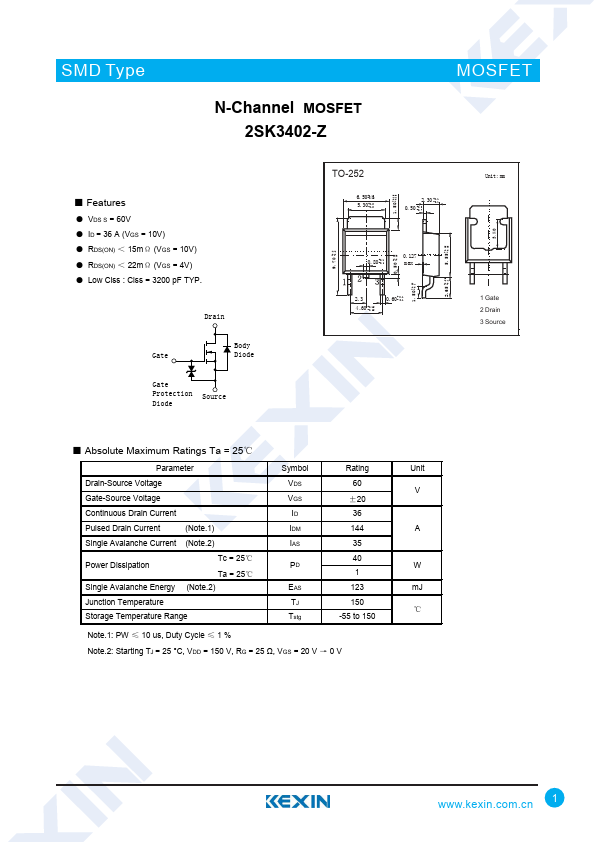

SMD Type N-Channel MOSFET 2SK3402-Z MOSFET ■ Features ● VDS S = 60V ● ID = 36 A (VGS = 10V) ● RDS(ON) ＜ 15mΩ (VGS = 10V) ● RDS(ON) ＜ 22mΩ (VGS = 4V) ● Low Ciss : Ciss = 3200 pF TYP. Drain Gate Body Diode Gate Protection Source Diode + 9.70 0.2 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30 +0.1 -0.1 0.50 +0.8 -0.7 Unit: mm + 1.50 0.15 -0.15 3.80 + 0.15 5 .5 5 -0.15 +0 0.50 .15 -0.15 +0 1.50 .28 -0.1 0.80+0.1 -0.1 0.127 m ax 2.3 4 .60 +0.15 -0.15 0.60+ 0.1 - 0.1 +0 2.65 .25 -0.1 1 Gate 2 Drain 3 Source ■ Absolute Maximum Ratings Ta = 25℃ Parameter Symbol Rating Unit Drain-Source Voltage Gate-Source Voltage VDS 60 V VGS ±20 Continuous Drain Current ID 36 Pulsed Drain Current (Note.1) IDM 144 A Single Avalanche Current (Note.
