2SK3402 - MOS Field Effect Transistor

Key Features

  • Low on-resistance RDS(on)1 =15 m MAX. (VGS = 10 V, ID = 18A) RDS(on)2 = 22 m MAX. (VGS = 4.0 V, ID = 18A) Low Ciss : Ciss = 3200 pF TYP. Built-in gate protection diode +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.1 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to sour.

📥 Download Datasheet

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

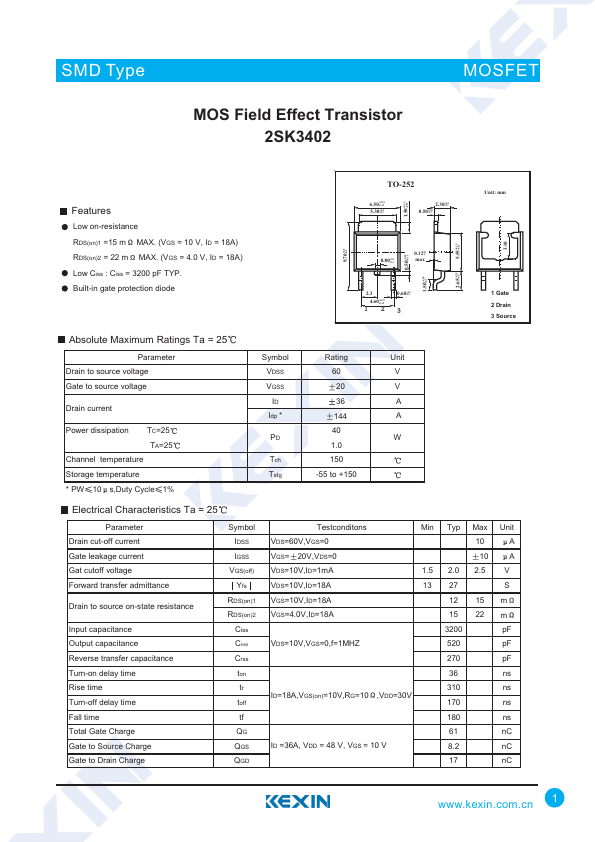

SMD Type MOS Field Effect Transistor 2SK3402 MOSFICET Features Low on-resistance RDS(on)1 =15 m MAX. (VGS = 10 V, ID = 18A) RDS(on)2 = 22 m MAX. (VGS = 4.0 V, ID = 18A) Low Ciss : Ciss = 3200 pF TYP. Built-in gate protection diode +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.1 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25 TA=25 Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% Symbol Rating Unit VDSS 60 V VGSS 20 V ID 36 A Idp * 144 A 40 PD W 1.
