2SK3404 Datasheet MOS Field Effect Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type MOSFET MOS Field Effect Transistor 2SK3404.

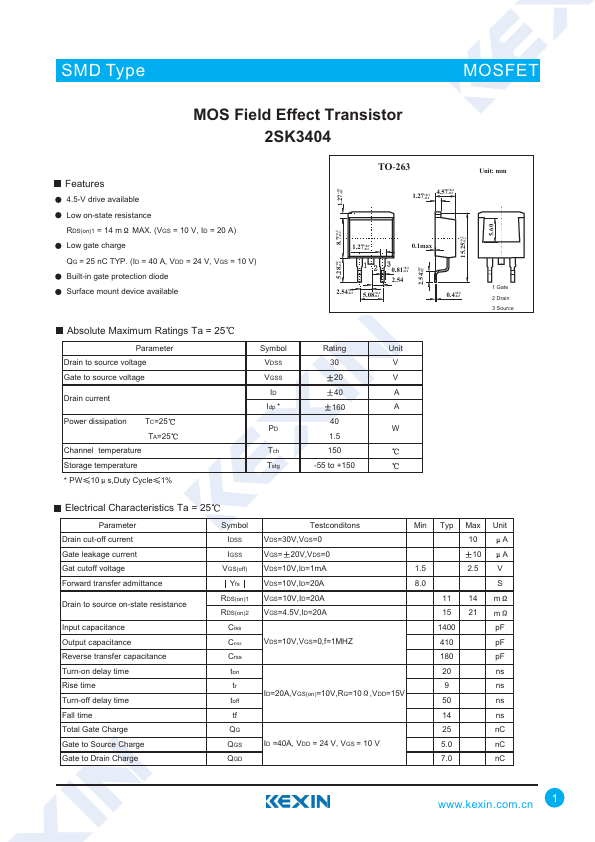

2SK3404 mos field effect transistor by Kexin Semiconductor - Datasheet Preview

Datasheet Details

Part number	2SK3404
Manufacturer	Kexin Semiconductor
File Size	40.87 KB
Description	MOS Field Effect Transistor
Download	2SK3404 Download (PDF)

Key Features

4.5-V drive available Low on-state resistance RDS(on)1 = 14 m MAX. (VGS = 10 V, ID = 20 A) Low gate charge QG = 25 nC TYP. (ID = 40 A, VDD = 24 V, VGS = 10 V) Built-in gate protection diode Surface mount device available Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25 TA=25 Channel temperature Storage temperature.
PW 10 s,Duty Cycle 1% Symbol VDSS VGSS ID Idp.
PD Tch Tstg TO-263 +0.2 4.57 +0.1 -0.2 1.
