2SK3405 - MOS Field Effect Transistor

Key Features

  • 4.5-V drive available Low on-state resistance RDS(on)1 = 9.0m MAX. (VGS = 10 V, ID = 24 A) Low gate charge QG = 34 nC TYP. (ID = 48 A, VDD = 16V, VGS = 10 V) Built-in gate protection diode Surface mount device available Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25 TA=25 Channel temperature Storage temperature.
  • PW 10 s,Duty Cycle 1% Symbol VDSS VGSS ID Idp.
  • PD Tch Tstg TO-263 +0.2 4.57 +0.1 -0.2 1.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SK3405 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK3402 SWITCHING N-CHANNEL POWER MOSFET NEC
2SK3402 MOS Field Effect Transistor Guangdong Kexin Industrial
2SK3403 N-Channel MOSFET Toshiba Semiconductor
2SK3404 SWITCHING N-CHANNEL POWER MOSFET NEC

Other Datasheets by Kexin Semiconductor

Part Number Description
2SK3404 MOS Field Effect Transistor
2SK3424 MOS Field Effect Transistor
2SK3424-ZJ N-Channel MOSFET
2SK3430 MOS Field Effect Transistor
2SK3430-ZJ N-Channel MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

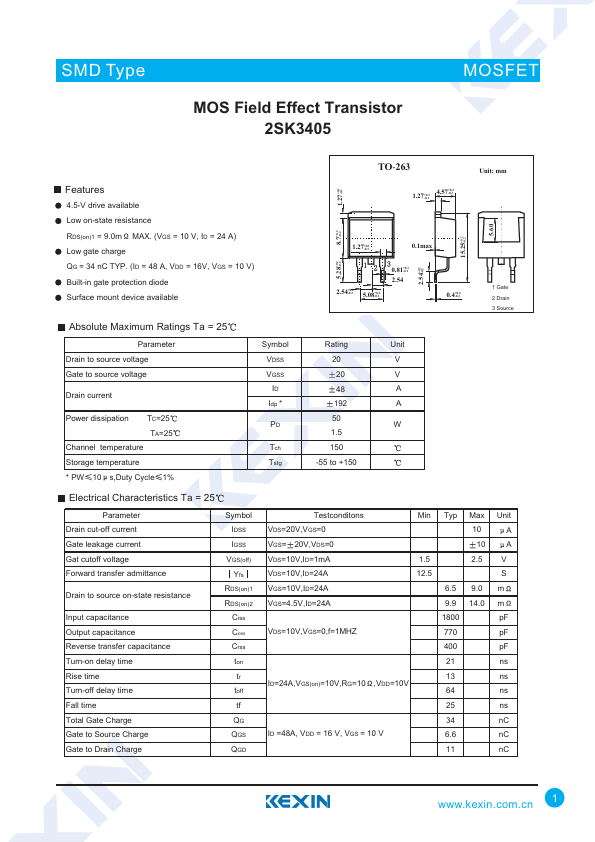

SMD Type MOS Field Effect Transistor 2SK3405 MOSFET Features 4.5-V drive available Low on-state resistance RDS(on)1 = 9.0m MAX. (VGS = 10 V, ID = 24 A) Low gate charge QG = 34 nC TYP. (ID = 48 A, VDD = 16V, VGS = 10 V) Built-in gate protection diode Surface mount device available Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Power dissipation TC=25 TA=25 Channel temperature Storage temperature * PW 10 s,Duty Cycle 1% Symbol VDSS VGSS ID Idp * PD Tch Tstg TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 +0.2 8.7 -0.2 +0.2 5.28 -0.2 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.
