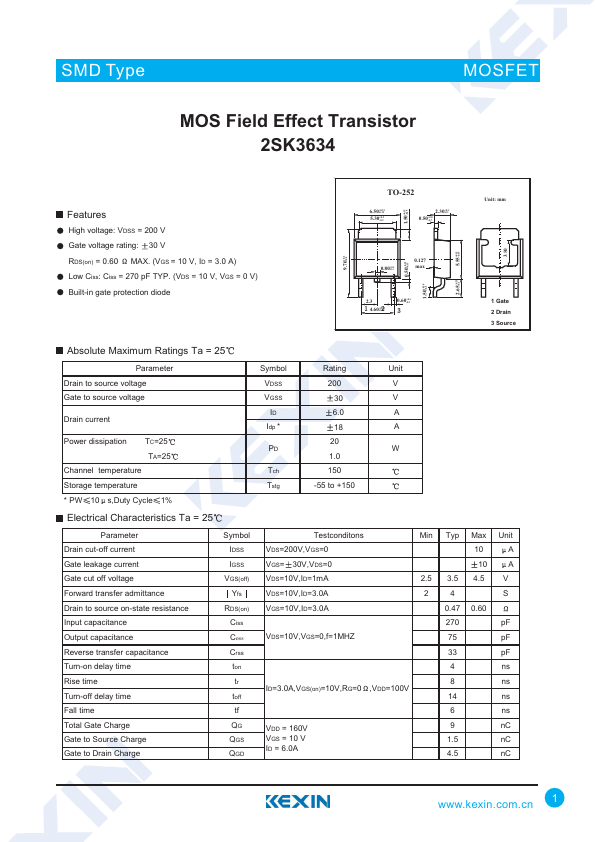

2SK3634 Datasheet Mos Field Effect Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type MOSFICET MOS Field Effect Transistor 2SK3634.

Datasheet Details

Part number	2SK3634
Manufacturer	Kexin Semiconductor
File Size	41.82 KB
Description	MOS Field Effect Transistor
Datasheet	2SK3634-Kexin.pdf

Key Features

High voltage: VDSS = 200 V Gate voltage rating: 30 V RDS(on) = 0.60 MAX. (VGS = 10 V, ID = 3.0 A) Low Ciss: Ciss = 270 pF TYP. (VDS = 10 V, VGS = 0 V) Built-in gate protection diode +0.2 9.70 -0.2 TO-252 6.50+0.15 -0.15 5.30+0.2 -0.2 2.30+0.1 -0.1 0.50+0.8 -0.7 Unit: mm +0.15 1.50 -0.15 3.80 +0.15 5.55 -0.15 0.80+0.1 -0.1 0.127 max 2.3 4.60+0.15 -0.15 0.60+0.1 -0.1 +0.15 0.50 -0.15 +0.28 1.50 -0.1 +0.25 2.65 -0.1 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter.
