2SK3902 Datasheet Mos Field Effect Transistor

Manufacturer: Kexin Semiconductor

Overview: SMD Type MOSFET MOS Field Effect Transistor 2SK3902.

Datasheet Details

Part number	2SK3902
Manufacturer	Kexin Semiconductor
File Size	39.79 KB
Description	MOS Field Effect Transistor

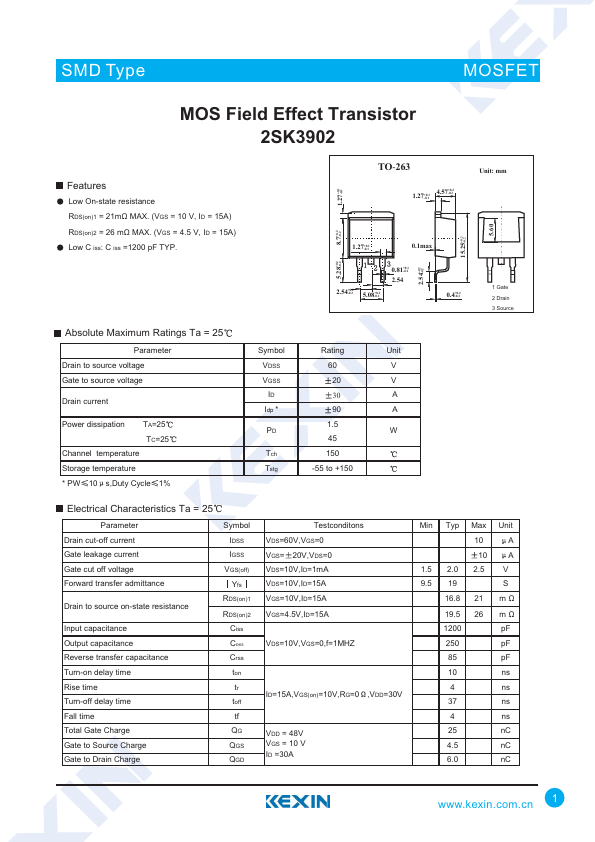

Datasheet	2SK3902-Kexin.pdf

Key Features

Low On-state resistance RDS(on)1 = 21mÙ MAX. (VGS = 10 V, ID = 15A) RDS(on)2 = 26 mÙ MAX. (VGS = 4.5 V, ID = 15A) Low C iss: C iss =1200 pF TYP. +0.2 5.28 -0.2 +0.2 8.7 -0.2 TO-263 +0.2 4.57 +0.1 -0.2 1.27-0.1 Unit: mm +0.1 1.27 -0.1 +0.2 2.54 -0.2 15.25-+00..22 5.60 1.27+0.1 -0.1 0.1max 2.54+0.2 -0.2 5.08+0.1 -0.1 0.81+0.1 -0.1 2.54 0.4+0.2 -0.2 1 Gate 2 Drain 3 Source Absolute Maximum Ratings Ta = 25 Parameter Drain to source voltage Gate to source voltage Drain current Powe.
